Gigabit Ethernet Media Converter

MCI-211G

This product is no longer being sold and might not be supported. Please see replacement part: MCW-211-F1G-T1G

Features

✔ Flexible fibre to copper converter

Converts 10/100/1000TX to Gigabit Fibre
Flexible SFP Fibre transceiver design

✔ Built in monitoring

Auto Fault Detection and Alarm
Fault Alert for port and power
Two way Link loss forwarding

✔ Industrial design specification

Power redundancy with wide range input
IP-31 grade protection with wide range operating temperature
1.5 KV Hi-Pot testing passed

Summary

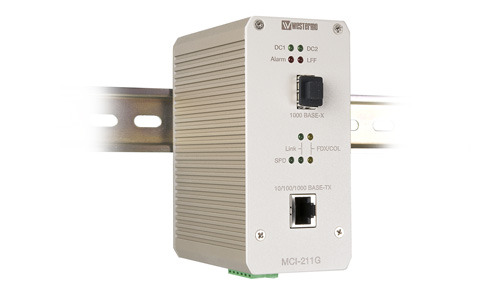

The Westermo MCI-211G is an industrial Gigabit Ethernet media converter. It has a rugged aluminum alloy case with IP-31 grade ingress protection as well as providing excellent heat dissipation characteristics.

The MCI-211G can operate over a wide voltage input range. It also has dual power inputs to ensure making the unit ideal in applications where a secondary power source is used to maintain high system integrity.

The Westermo MCI-211G uses a hot-swappable Small Formfactor Pluggable (SFP) Fibre transceiver allowing the unit to operate over pretty much any type and distance of fibre supported by SFP technology.

The MCI-211G features Link Fault Forwarding (LFF) in order to forward link status changes to alert remote or central management systems via the connected media. In industrial systems however alarms can be shown on the fault contact giving an alternative method of fault detection. This fault contact can be easily configured with a simple DIP switch.

Technical Specifications

Gigabit Ethernet Media Converter
1 x 10/100/1000 Base-TX with Auto MDI/MDI-X function, Auto-Negotiation
1 x SFP socket with hot-swappable function for Gigabit Ethernet SFP Transceiver
