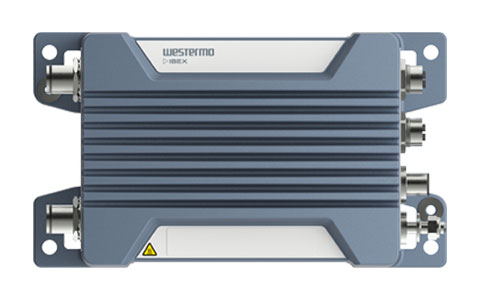

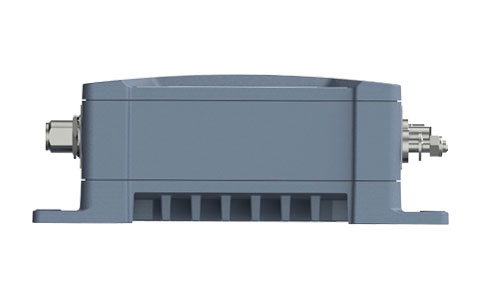

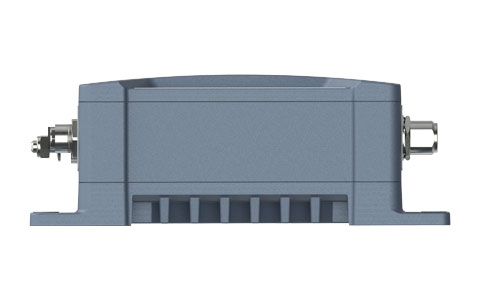

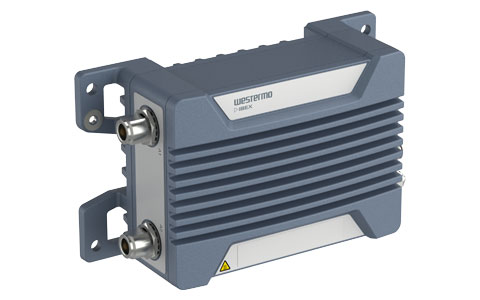

Industrial Outdoor Wi-Fi 6 Access Point

Ibex-1310

Features

✓ Reliable, compact and secure WLAN access point

• Dual Wi-Fi 6 802.11ax WLAN interfaces
• Concurrent 2.4 GHz and 5 GHz
• Low power consumption
• Flexible and easy set-up

✓ Designed for heavy industry usage

• IP66 and -40 to +70°C
• Compact design with M12 interfaces
• MACsec and Secure Boot
• 9.6 to 60 VDC isolated power supply

✓ Latest generation 802.11 design

• IEEE802.11ax for maximum efficiency
• Client management features
• 4 MIMO spatial streams

Summary

The Ibex-1310 is a concurrent dual-band 802.11ax WLAN access point and client product for industrial vehicle and stationary applications. Ibex-1310 provides reliable efficient high-speed data transfers with latest cyber security features.

The Ibex-1310 is designed to withstand the tough environments, exposed to constant vibration, extreme temperatures, humidity, and demanding electromagnetic environments. It is also approved for use in vehicles, such as buses.

A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water. N-type connectors provide industry standard interface to external antennas.

An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost.

Thorough type testing at independent labs certifies the compliance to a wide range of standards, including EN 50121-4.

Ibex-1310 is running Westermo's robust and easy to use SW6 operating system with latest cybersecurity features and updates.

Read more

Technical Specifications

Industrial Outdoor Wi-Fi 6 Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz

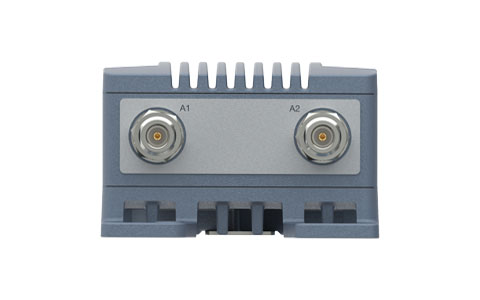

2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
