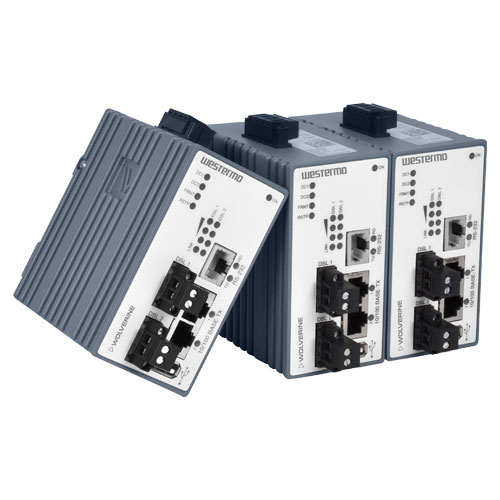

Wolverine series
Industrial Ethernet extenders providing high data rates over long distances
The Wolverine series of industrial Ethernet extenders allow cost-effective Ethernet networks to be created over long distances, at high data rates. The SHDSL technology employed makes it possible to reuse many types of pre-existing cabling which in turn can lead to considerable financial savings. With support for transparent point to point connections, multidrop networks, redundant rings, legacy serial connections and layer 3 routing functions, the Wolverine can meet any demand your application requires.
DDW-120
Ethernet SHDSL Extender
1 x 2 positon detachable screw terminal, 192 kbit/s to 15,3 Mbit/s
1 x 2.5 mm jack, 115.2 kbit/s

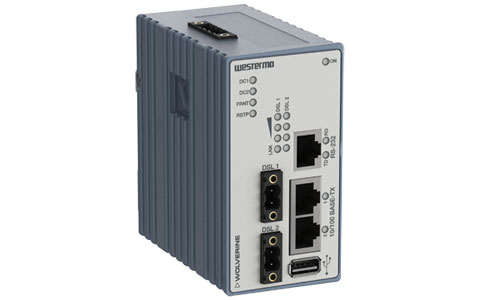

DDW-142
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC
Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC-BP
Industrial Ethernet Extender with bypass relay
2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
2 x 2-position detachable screw terminal
1 x RJ-45, 300 bit/s – 115.2 kbit/s
DDW-142-485
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 port
DDW-242
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC
Advanced Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC-BP
Advanced Industrial Ethernet Extender with bypass relay
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-485
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 ports
