DNV GL Approved
Certified to operate in marine environments
Maritime facilities are known for their harsh environments. Brutal offshore climate and weather conditions are factors which underscore the importance of making sure that products used for operation are robust enough to withstand these persistent conditions over longer periods. Existing oil platforms, rigs and pipelines are being upgraded and modernized to the highest standards. Only specified and tested products may be used for certain networks on an offshore facility.
An approval issued by Den Norske Veritas (DnV) confirms a device’s ability to withstand wide temperatures, humidity, extreme vibrations, shock and EMC noise. Common questions asked by the industry are: Is the solution future proof? Is the product water and dust proof? Is the product condensation proof? Can it withstand high humidity and heated platforms.
DnV certification ensures
- Application of modern safety principles
- Adequate certification of safety critical components and systems meeting international and regional standards
- Reduced risk
- Makes oil and gas facilities safer
Westermo’s products have the following competitive advantages for offshore application
- Hazard rated for safe operation in offshore oil rigs and gas fields
- Hardened features such as rugged enclosure
- Tolerance of wide temperature variations
- Suitable for rugged work places
- Guaranteed high band width and operation under severe conditions
Westermo DNV approved products
Ibex-RT-330-5G
EN 50155 5G Router
4x4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4x4 MIMO 5G 3GPP Rel 16
2x2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Viper-112A-T5G
EN 50155 Managed Gbps Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P12-HV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-HV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-LV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-208-T8G
Managed Gigabit Routing Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port
Viper-208-TBN
Managed EN 50155 Backbone Routing Switch
8 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A
EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-P8-LV
EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G
EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T5G
EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-220A-P8-HV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-LV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P12-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
BRD-355A | BRD-355B
Industrial ADSL/VDSL Router
BRD-335A (Annex A)
BRD-355B (Annex B and Annex J)
1 x RS-232, 300 bit/s – 115.2 kbit/s
2 x Ethernet TX, 10 Mbit/s or 100 Mbit/s
1 x DSL, RJ-11
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4x4 MU-MIMO
4x or 8x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6x integrated RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3x3 MIMO
3x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3x3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3x3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4x4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3x3 MIMO LTE CAT-7
5x or 6x QLS or 3x SMA antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3x3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
DDW-120
Ethernet SHDSL Extender
1 x 2 positon detachable screw terminal, 192 kbit/s to 15,3 Mbit/s
1 x 2.5 mm jack, 115.2 kbit/s
DDW-142
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC
Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-142-12VDC-BP
Industrial Ethernet Extender with bypass relay
2 x RJ-45, 10 Mbit/s, 100 Mbit/s, manual or auto
2 x 2-position detachable screw terminal
1 x RJ-45, 300 bit/s – 115.2 kbit/s
DDW-142-485
Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 port
DDW-242
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC
Advanced Industrial Ethernet Extender with 12VDC support
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-12VDC-BP
Advanced Industrial Ethernet Extender with bypass relay
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x RJ-45, RS-232 port 300 bit/s – 115.2 kbit/s
DDW-242-485
Advanced Industrial Ethernet Extender
2x RJ-45, 10 Mbit/s, 100 Mbit/s Base T
2x 2-position detachable screw terminals for SHDSL ports
1x 4-position detachable screw terminal for RS-422/485 ports
EDW-100
Serial Adapter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 300 bit/s to 115.2 kbit/s
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
EDW-120
Serial Adapter
2 x RS-232 9-pin D-sub, 300 bit/s to 115.2 kbit/s
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)
GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector

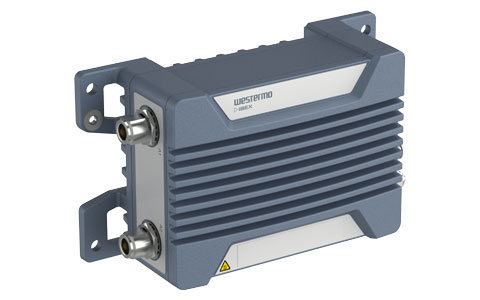

Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+

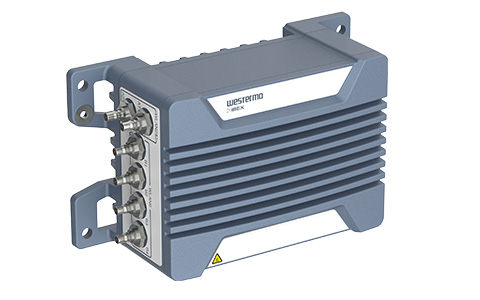

Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+

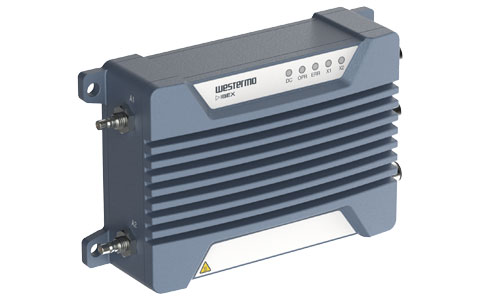

Ibex-RT-220
EN 50155 WLAN 2x2 Client/Bridge/Access Point
2x2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC

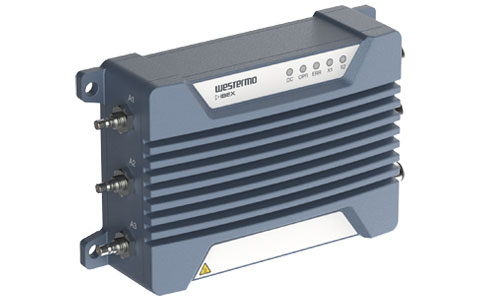

Ibex-RT-320
EN 50155 WLAN 3x3 Client/Bridge/Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2x2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

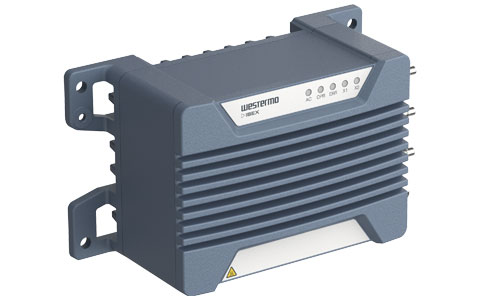

Ibex-RT-370
WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE

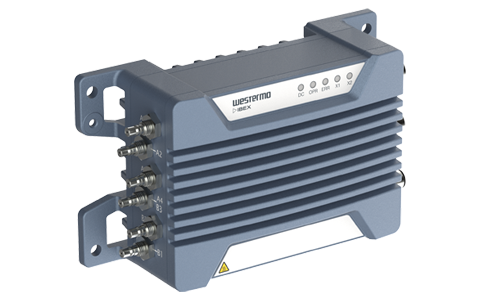

Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4x4 MU-MIMO 5 GHz
2x2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630
EN 50155 LTE and WLAN Router
2x2 MIMO LTE-A Cat-12
3x3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Lynx 3306-F2G-T4-LV
Industrial Layer 2 Switch
4 x RJ45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3306-E-F2G-T4-LV
Industrial Layer 3 Switch
4 x RJ45, 10/100/BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3310-F2G-T8-LV
Industrial Layer 2 Switch
8 x RJ45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3310-E-F2G-T8-LV
Industrial Layer 3 Switch
8 x RJ45, 10/100BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G2.5-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C
Lynx 3510-E-F2G2.5-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C
Lynx 3510-F2G2.5-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G2.5-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 2.5 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-F2G-P8G-LV
Industrial Layer 2 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C
Lynx 3510-E-F2G-P8G-LV
Industrial Layer 3 PoE+ Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +70°C
Lynx 3510-F2G-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 3510-E-F2G-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s, SFP
12 to 48 VDC
-40 to +70°C
Lynx 5512-F4G-T8G-LV
Industrial Layer 2 Gigabit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5512-E-F4G-T8G-LV
Industrial Layer 3 Gigabit Switch
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5612-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 2
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
Lynx 5612-E-F4G-T8G-LV
IEC 61850-3 Substation Automation Switch, Layer 3
8 x RJ45, 10/100/1000 Mbit/s
4 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
L105-S1
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L106-F2G
Managed Ethernet Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L106-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2
Managed Device Server Switch
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L108-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L110-F2G
Managed Ethernet Switch
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L110-F2G-12VDC
Managed Ethernet Switch - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L205-S1
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L206-F2G
Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L206-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2-12VDC
Managed Device Server Switch - 12 volt version
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L210-F2G
Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L210-F2G-12VDC
Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
LD-02
Line sharing modem
1x 10 mA tri-state balanced current loop up to 38.4 kbit/s
1 x RS-232 up to 38.4 kbit/s
1 x RS-422/485 up to 38.4 kbit/s
MCW-211-F1G-T1G
Industrial Ethernet Gigabit Media Converter
1 x RJ-45, 10 Mbit/s, 100 Mbit/s or 1 Gbit/s
1x SFP (LC connector), 100 Mbit/s or 1 Gbit/s, transceivers supported
MCW-211-MM-LC2
Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using multimode fibre with LC connectors, 100 Mbit/s
MCW-211-MM-SC2
Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using multimode fibre with SC connectors, 100 Mbit/s
MCW-211-SM-LC15
Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with LC connectors, 100 Mbit/s
MCW-211-SM-LC40
Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with LC connectors, 100 Mbit/s
MCW-211-SM-SC15
Industrial Ethernet Media Converter
1 x RJ-45, 10 Mbit/s or 100 Mbit/s
1 x fibre port using singlemode fibre with SC connectors, 100 Mbit/s
MDW-45 HV
RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s
MDW-45 LV
RS-422/485 Converter
1 x RS-422/485 4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s
1 x RS-232 9-pin D-sub, 1200 bit/s to 115.2 kbit/s
Merlin-4106-T4-S1-DI1
Industrial Cellular Router
LTE Cat 4
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Merlin-4106-T4-S1-DI1-QFT
Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Merlin-4407-T4-S2-LV
Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V - 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Serial ports RS-232/RS485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector
Merlin-4609-F2G-T4-S2-DI6-DO2-LV
Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector
Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR
Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
MRD-415
Industrial 4G Router
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
1 x SIM slot
MRD-455
Industrial 4G LTE Cellular Router - EMEA/APAC version
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
2 x Mini-SIM slots
ODW-710-F1
Point-to-Point Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s
ODW-710-F2
Ring / Multidrop Fibre Converter PROFIBUS
1 x PROFIBUS DP 9 600 bit/s – 12 Mbit/s
ODW-720-F2
Ring / Multidrop Fibre Converter RS-232
1 xRS-232 port 300 bit/s – 250 kbit/s
ODW-730-F1
Point-to-Point Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s
ODW-730-F2
Ring / Multidrop Fibre Converter RS-422/485
1 x RS-422/485 port 300 bit/s – 1.5 Mbit/s
PII-2G
Industrial 2-port PoE Injector
2 x 10/100/1000 TX data in ports
2 x 10/100/1000 TX IEEE 802.3af/at PoE ports
PS-60
DIN-rail Power Supply
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 250 VDC
Output voltage: 24 to 28 VDC
Output current: 2,5A
PS-260
DIN-rail Power Supply Unit
Input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 159 VDC
Output voltage: 48 to 56 VDC
Output current: 4.0 A to 6.0 A
PSI-010-FT2G-P8G
Industrial Gigabit PoE+ Booster Switch
802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
2 x 1 Gbit/s RJ-45/SFP combo ports
Max. 240W total PD consumption
Max. 30W per PoE port
-40 to +75°C
RD-48 LV
RS-422/485 Repeater
2 x 4-position detachable screw terminal, 300 bit/s to 1.5 Mbit/s
RedFox-5328-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5328-E-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 2
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 2
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 2
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 2
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-7528-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 2
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RFI-111-F4G-T7G
Managed Ethernet Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-119-F4G-T7G
Managed Ethernet Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-211-F4G-T7G
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-211-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFI-219-F4G-T7G
Industrial Routing Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-F4G-T7G-F8
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-219-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-127-F4G-T7G-AC
19” Rackmount Managed Ethernet Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-127-F4G-T7G-DC
19” Rackmount Managed Ethernet Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-219-F4G-T7G-AC
19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-219-F4G-T7G-DC
19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-227-F4G-T7G-AC
19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-227-F4G-T7G-DC
19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
SandCat-2305-F1-MM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) multi-mode SC port
SandCat-2305-F1-SM-T4-LV
Industrial Ethernet 5-port Unmanaged Switch
4 x 10/100 Base T(X) ports
1 x 100 Base F(X) single-mode SC port
SandCat-2305-T5-LV
Industrial Ethernet 5-port Unmanaged Switch
5 x 10/100 Base T(X) ports
SDI-541-MM-SC2
Compact 4-port Ethernet Fibre Switch
4x 10/100 Base T ports
1x 100 Base FX multi-mode SC port
SDI-541-SM-SC30
Compact 4-port Ethernet Fibre Switch
4x 10/100 Base T ports
1x 100 Base FX single-mode SC port
SDI-862-MM-SC2
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports multi-mode SC connector
SDI-862-SM-SC30
Unmanaged 8-port Ethernet Fibre Switch
6 x 10/100 Base T ports
2 x 100 Base-FX ports single-mode SC connector
SDW-532-MM-LC2
Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors
SDW-532-MM-SC2
Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports SC connectors
SDW-532-SM-LC15
Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors
SDW-532-SM-LC40
Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports LC connectors
SDW-532-SM-SC15
Industrial Ethernet 5-port Switch
3 x 10/100 Mbit/s Base T ports
2 x 100 Mbit/s Base FX ports SC connectors
SDW-541-F1G-T4G
Industrial Ethernet 5-port Gigabit Switch
4 x 100 Mbit/s Base T or 1 Gbit/s ports
1x SFP, 100 Mbit/s or 1 Gbit/s, transceivers LC connectors
SDW-541-MM-LC2
Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports LC connectors
SDW-541-MM-SC2
Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports SC connectors
SDW-541-SM-LC15
Industrial Ethernet 5-port Switch
4 x 10 Mbit/s or 100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports LC connectors
SDW-541-SM-SC15
Industrial Ethernet 5-port Switch
4 x 10/100 Mbit/s Base T ports
1 x 100 Mbit/s Base FX ports SC connectors
100 Mbit/s Singlemode SFP Transceivers
Range variants from 20 to 120 km
Operating temperature: -40 to +85°C
1 Gbit/s Singlemode SFP Transceivers
Range variants from 10 to 110 km
Operating temperature: -40 to +85°C
100 Mbit/s and 1 Gbit/s Copper SFP Transceivers
100 m range over CAT 5 Ethernet cable
Operating temperature: -40 to +85°C
TD-23 LV
Multidrop modem
1 x Leased line 300 bit/s to 1200 bit/s
1 x RS-232 300 bit/s to 1200 bit/s
1 x RS-422/485 300 bit/s to 1200 bit/s
100 Mbit/s with BiDi SFP Transceivers
Range variants from 20 to 120 km
Operating temperature: -30 to +85°C
TD-23 LV with relay
Multidrop modem
1 x Leased line 300 bit/s to 1200 bit/s
1 x RS-232 300 bit/s to 1200 bit/s
1 x RS-422/485 300 bit/s to 1200 bit/s
1 Gbit/s with BiDi SFP Transceivers
Range variants from 20 to 80 km
Operating temperature: -30 to +85°C
2.5 Gbit/s SFP Transceivers
Range variants from 500 m to 80 km
Operating temperature: -40 to +85°C
10 Gbit/s SFP Transceivers
Range variants from 500 m to 80 km
Operating temperature: -40 to +85°C
Viper-002-T1G-PL1
EN 50155 Ethernet Powerline Bridge
1 x 1 Gbps Ethernet port
1 x 2-wire cable port
Viper-002-T1-PL1
EN 50155 Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port
Viper-112A-P8-HV
EN 50155 Managed PoE Switch - high voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-P8-LV
EN 50155 Managed PoE Switch - low voltage version
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G
EN 50155 Managed Gbps Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-HV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-LV
EN 50155 Managed Gbps PoE Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-HV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-LV
EN 50155 Managed Gbps PoE Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-120A-P8-HV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-P8-LV
EN 50155 Managed PoE Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G
EN 50155 Managed Gbps Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-208-T4G-TBN
Managed EN 50155 Backbone Routing Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-208-T8G-TBN
Managed EN 50155 Backbone Routing Switch
8 x Gbps ports
1 x USB
1 x RS-232 console port
Viper-212A-P8-HV
EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T5G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A
EN 50155 Managed Routing Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Ray Lock
Network application expert
For support inquiries, click here to contact Technical Support
