CyBox
EN 50155 approved network and wireless communication solutions for railway and automotive applications
Westermo's digital network solutions include components for high-speed train-to-ground communication, stable and secure Internet access, real-time passenger infotainment, interfaces to the railway infrastructure for predictive maintenance, rail operations and fleet management as well as dedicated cable and antenna solutions. Product design complies with EN 50155 safety standards.
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3 x 3 MIMO
6 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC

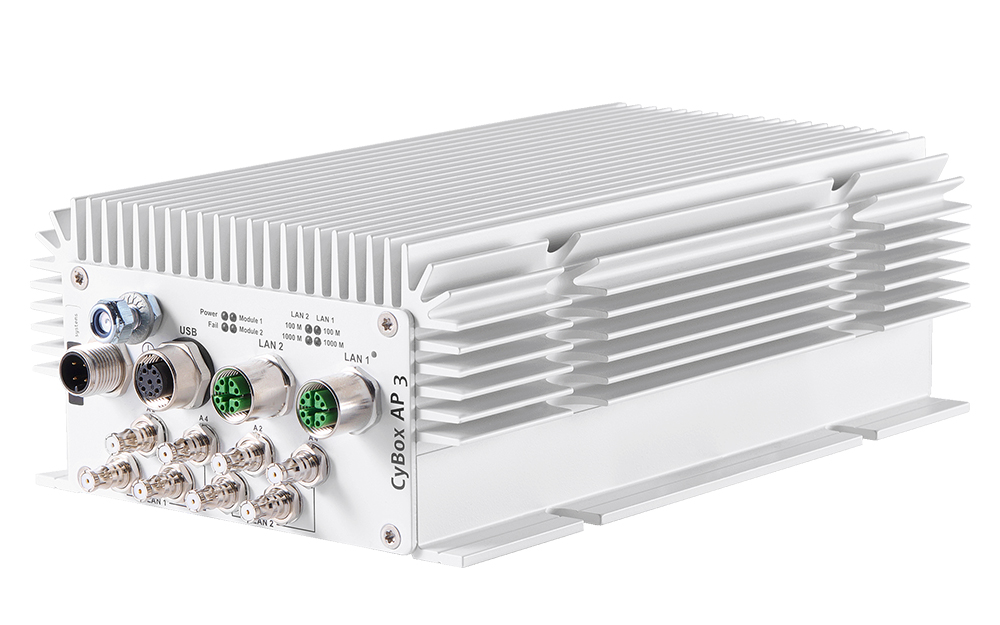

CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4 x 4 MU-MIMO
4 x or 8 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3 x 3 MIMO
3 x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
