Wireless LAN (WLAN)
Kompakte und vielseitige WLAN-Geräte für zuverlässige drahtlose Übertragung unter extremen Bedingungen

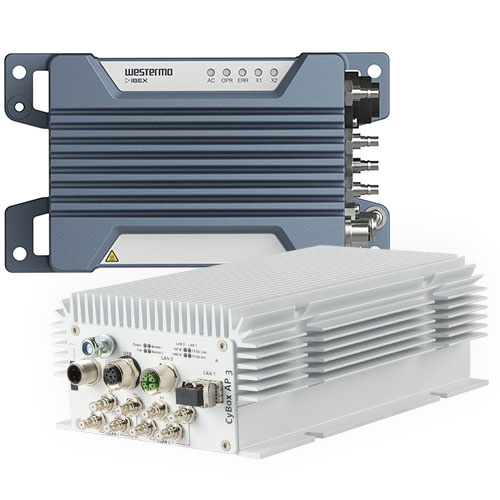

Westermos industrielle WLAN-Geräte (Wireless Local Area Network) wurden entwickelt, um eine zuverlässige, kontinuierliche Hochgeschwindigkeits-Datenkommunikation in extremen Betriebsumgebungen zu gewährleisten. Dazu gehören die Überwachung von Zuggeschwindigkeiten und Gleisbedingungen sowie die Bereitstellung von Onboard-Videoüberwachung und Passagier-Hotspots.
Die WLAN-Geräte erfüllen die Norm EN 50121-4 für streckenseitige Anwendungen sowie die Norm EN 50155 für Onboard-Anwendungen. Neben den Bahnanwendungen eignet sich die WLAN-Reihe auch sehr gut für den Einsatz in anderen Industriezweigen mit schwierigen Betriebsbedingungen und schwierigen Umgebungen wie dem Bergbau.
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4x4 MIMO 5G 3GPP Rel 16
2x2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4x4 MU-MIMO
4x or 8x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6x integrated RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3x3 MIMO
3x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3x3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3x3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4x4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3x3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)
GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-RT-220
EN 50155 WLAN 2x2 Client/Bridge/Access Point
2x2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-320
EN 50155 WLAN 3x3 Client/Bridge/Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-370
WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4x4 MU-MIMO 5 GHz
2x2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC

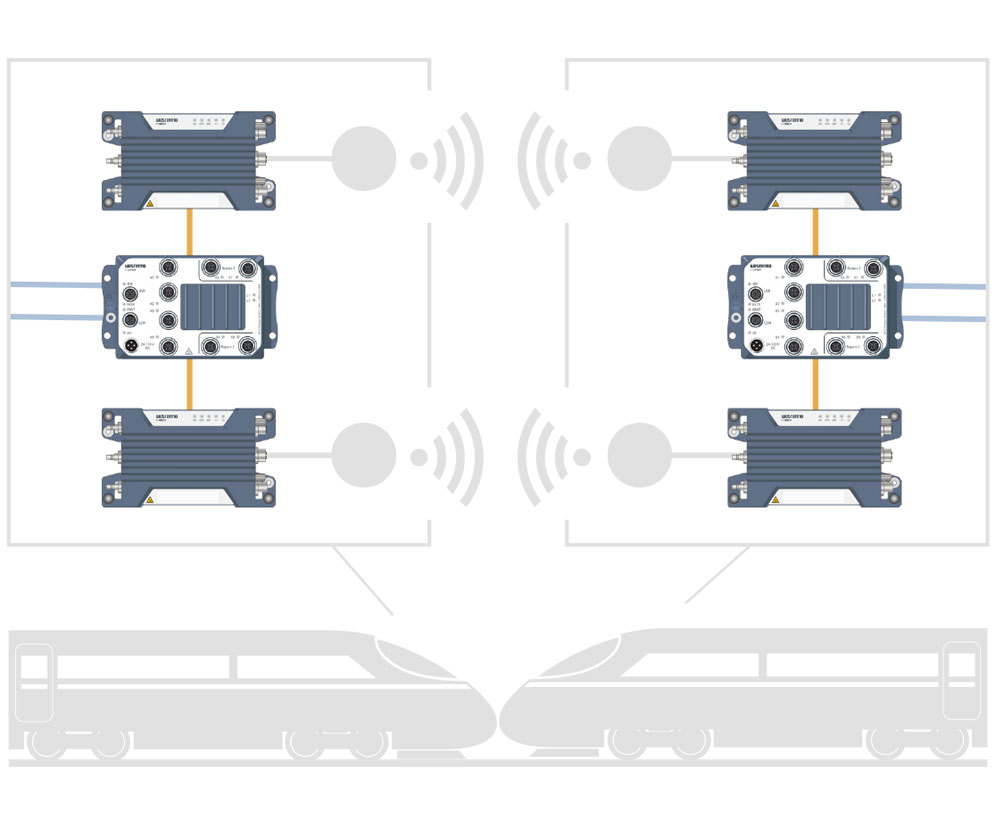

Wireless-Lösungen für Züge
Kein Bedarf an Netzwerkkabel mehr! Robuste und zuverlässige EN 50155-Wireless-Lösungen ermöglichen die Kommunikation zwischen dem fahrenden Zug und der Umgebung (Train-to-Ground) sowie die drahtlose Kommunikation zwischen Fahrzeugen oder Internet-Zugang für die Passagiere.
