Network connectivity for digital payment systems

Public transport passenger numbers are increasing worldwide, which can also mean increased congestion at stations and on-board trains. Digital solutions are becoming more common, and smartphones, near field communication (NFC) and radio frequency identification (RFID) systems are being integrated into stations and on-board trains to improve the travel experience. Digital ticketing solutions help prevent congestion but increase the need for robust and available networks. Westermo offers a variety of network solutions for connecting digital payment systems that are typically found on-board trains and at railway stations.

 Network solutions for onboard e-ticketing systems

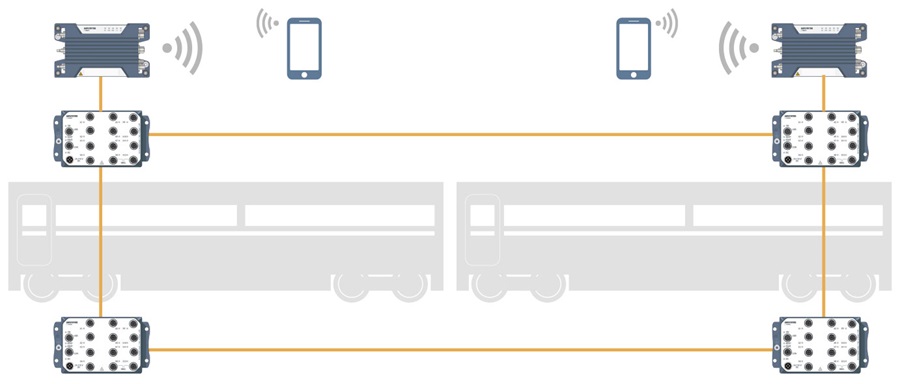

On-board expandable WLAN network for mobile ticketing system

Create a secure wireless onboard ticketing solution using the Westermo IBEX onboard radios together with the versatile Viper product range

  • Fully EN50155 compliant wireless network with onboard roaming
  • Separate hidden BSSID for ticketing machines
  • Share infrastructure with up to 17 separate Wireless networks together with dedicated virtual LAN
  • Gigabit PoE powered Access Points

Using WPA3 and VPN tunnel technology, a secure and reliable network for e-ticketing can be built. The infrastructure can also be used to create parallel networks and services since Westermo supports up to 17 different BSSIDs.

Client and band steering between the connected radios together with air-time fairness and multi-user MIMO allows for efficient use of the wireless medium with many simultaneous users.

The Ibex radios can be powered from the gigabit PoE ports available on the Viper-112A-T5G-P8 or directly from the battery.
