Wireless Railway Communications
Wireless for onboard and trackside systems
Westermo offer a wide range of robust and reliable network devices for wireless solutions that are specifically designed for meeting the need for data communication within the rail industry. Wireless solutions are particularly useful in train applications because cables can be impractical or not possible to install, such as data communication between two carriages, or between the train and the trackside or station network.
Wireless communication solutions for trains and railway
Westermo offers a complete range of industrial wireless data communication solutions for Train to Ground, Wireless Inter-Carriage Link, Passenger Wi-Fi and Remote Access applications. The Ibex series of WLAN & LTE devices are designed to ensure reliable high-speed data communication even in extreme operational environments.

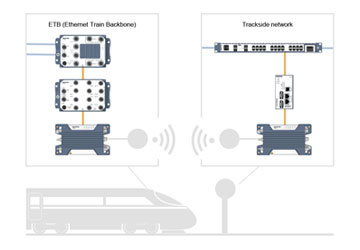

Wireless datacoms for train to ground
Wireless communication for moving trains and ground control centres along the track.

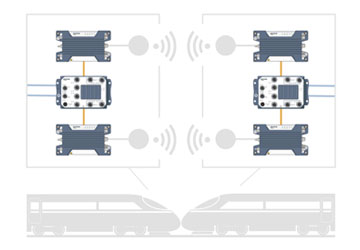

Wireless train coupling (ICL)
Reliable solutions for interconnecting rail carriages wirelessly.

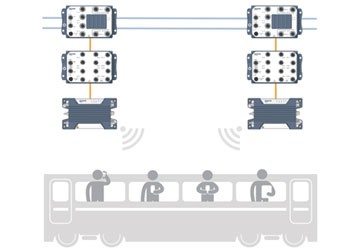

WLAN solutions for onboard Wi-Fi
Robust WLAN 802.11ac Wave2 solutions for high-density networks with multiple users.

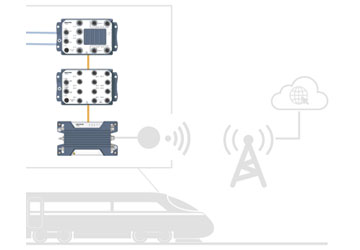

Remote access over the mobile network
Secure and reliable connectivity over 4G LTE networks for applications that require real time data.
Discover our range of compact WLAN & LTE devices
The Westermo Ibex series includes robust wireless routers/gateways, access points, clients and bridges suitable for rail, transport and other mission-critical applications.
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3 x 3 MIMO
6 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4 x 4 MU-MIMO
4 x or 8 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3 x 3 MIMO
3 x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3 x 3 MIMO
11 x QLS antenna connectors
5 x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3 x 3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6 x integrated RF antennas
1 x 1 Gbps port, M12 connector
PoE+
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-220
EN 50155 WLAN 2 x 2 Client/Bridge/Access Point
2 x 2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-320
EN 50155 WLAN 3 x 3 Client/Bridge/Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-370
WLAN Infrastructure Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4 x 4 MU-MIMO 5 GHz
2 x 2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
