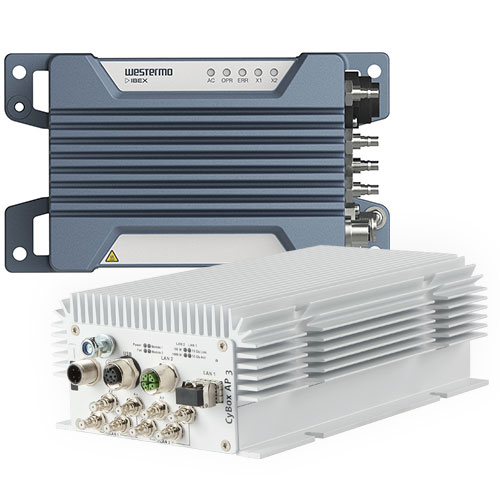

Industrial Wireless LAN (WLAN) access points, clients & bridges
Compact and versatile WLAN devices for reliable wireless transmission in harsh industrial and outdoor environments
Westermo's range of industrial wireless local area network (WLAN) devices have been designed to ensure reliable, continuous, high-speed data communications in extreme operational environments, supporting applications such as communication based train control, monitoring of track conditions, and providing on-board video surveillance and passenger hotspots.
The WLAN devices are approved to the EN 50121-4 standard for trackside applications as well as the EN 50155 standard for onboard applications. In addition to rail applications, the WLAN range is very well suited for deployment in other industries with severe operating conditions and harsh environments, such as mining.
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4x4 MIMO 5G 3GPP Rel 16
2x2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4x4 MU-MIMO
4x or 8x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6x integrated RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3x3 MIMO
3x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3x3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3x3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4x4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3x3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)
GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-RT-220
EN 50155 WLAN 2x2 Client/Bridge/Access Point
2x2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-320
EN 50155 WLAN 3x3 Client/Bridge/Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-370
WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4x4 MU-MIMO 5 GHz
2x2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Wireless solutions for train communication
Remove the need for network cables. Westermo offers a complete range of wireless data communication solutions for train to ground, wireless inter-carriage links, passenger Wi-Fi applications and remote access over the mobile network.
