Wireless Railway Communications
Wireless for onboard and trackside systems
Westermo offer a wide range of robust and reliable network devices for wireless solutions that are specifically designed for meeting the need for data communication within the rail industry. Wireless solutions are particularly useful in train applications because cables can be impractical or not possible to install, such as data communication between two carriages, or between the train and the trackside or station network.
Wireless communication solutions for trains and railway
Westermo offers a complete range of industrial wireless data communication solutions for Train to Ground, Wireless Inter-Carriage Link, Passenger Wi-Fi and Remote Access applications. The Ibex series of WLAN & LTE devices are designed to ensure reliable high-speed data communication even in extreme operational environments.

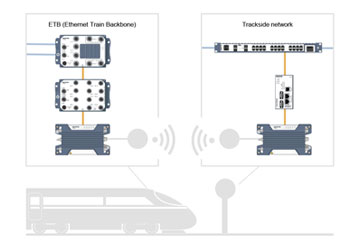

Wireless datacoms for train to ground
Wireless communication for moving trains and ground control centres along the track.

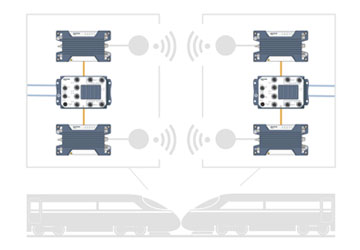

Wireless train coupling (ICL)
Reliable solutions for interconnecting rail carriages wirelessly.

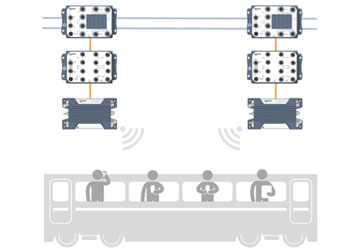

WLAN solutions for onboard Wi-Fi
Robust WLAN 802.11ac Wave2 solutions for high-density networks with multiple users.

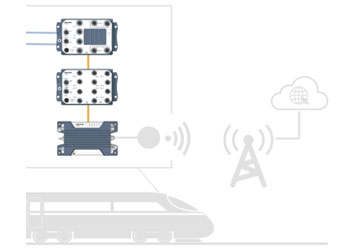

Remote access over the mobile network
Secure and reliable connectivity over 4G LTE networks for applications that require real time data.
Discover our range of compact WLAN & LTE devices
The Westermo Ibex series includes robust wireless routers/gateways, access points, clients and bridges suitable for rail, transport and other mission-critical applications.
Ibex-RT-330-5G
EN 50155 5G Router
4x4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4x4 MIMO 5G 3GPP Rel 16
2x2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
CyBox AP 3-W
Railway WLAN Access Point with Wi-Fi 5 Wave 2 dual radio
4x4 MU-MIMO
4x or 8x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
CyBox AP 2-W
Railway WLAN Access Point with Wi-Fi 5 dual radio
3x3 MIMO
6x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
PoE+
Power feed 24 to 110 VDC
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6x integrated RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox AP-A
Railway WLAN Access Point with Wi-Fi 5 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac
3x3 MIMO
3x RF antennas
1x 1 Gbps port, M12 connector
PoE+
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3x3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3x3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4x4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3x3 MIMO LTE CAT-7
5x or 6x QLS or 3x SMA antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3x3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2x2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-RT-220
EN 50155 WLAN 2x2 Client/Bridge/Access Point
2x2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-320
EN 50155 WLAN 3x3 Client/Bridge/Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2x2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-370
WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
