Layer 3 Switche
Ein robuster Industrieswitch, Router und Firewall in einer Box
The Westermo range of industrial layer 3 switches provides enhanced routing functionality, all in a robust, single unit design. Our switches offer static routing, IPSec VPN support, DMZ and a powerful firewall in order to segregate networks and protect mission-critical data. With support for Network Address Translation (NAT) and port-forwarding, the Westermo layer 3 switches ensure your network is protected from the threats posed by the Internet.
Viper-208-T8G-TBN
Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232

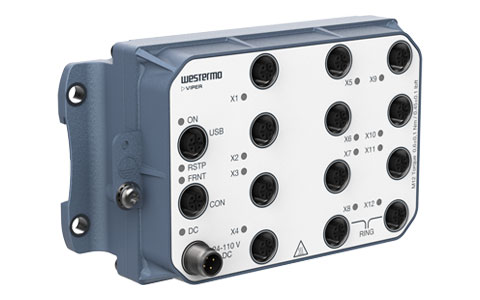

Viper-212A
EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port

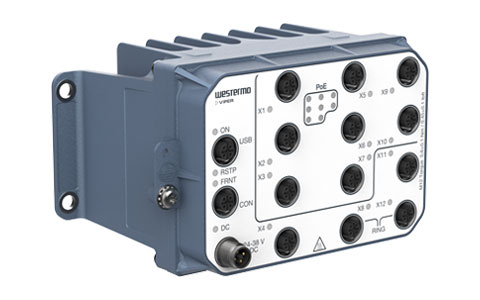

Viper-212A-P8-LV
EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G
EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T5G
EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port

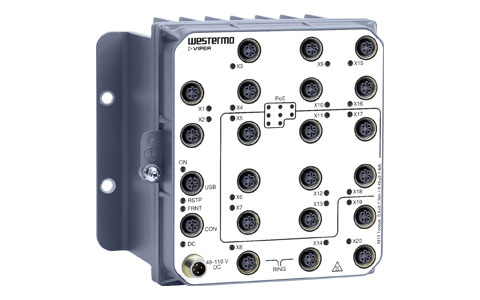

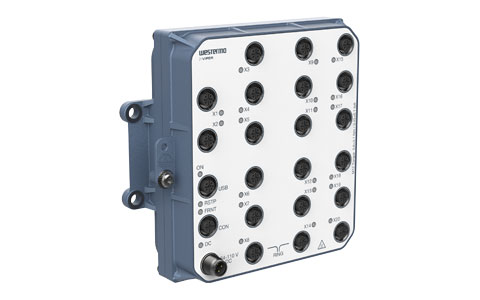

Viper-220A-P8-HV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

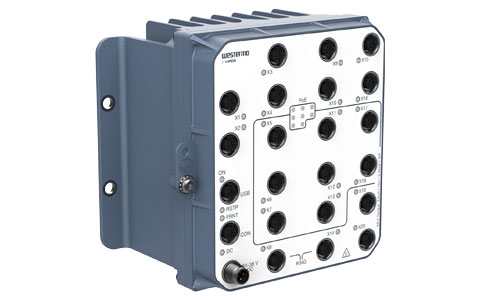

Viper-220A-P8-LV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

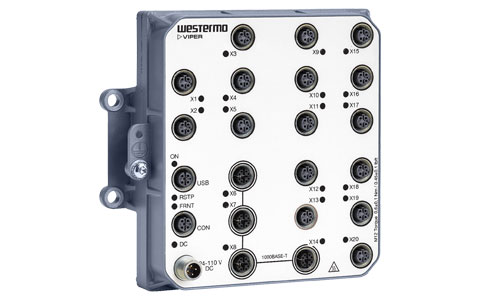

Viper-220A-T4G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

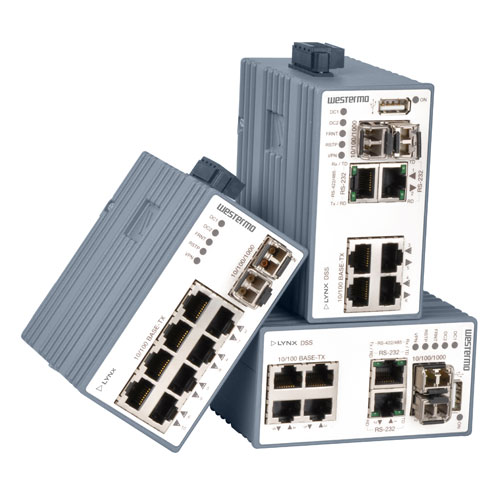

L205-S1
Managed Device Server Switch mit Routingfunktionalität
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
L206-F2G
Managed Ethernet Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L206-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L208-F2G-S2
Managed Device Server Switch with Routing Functionality
4 x RJ-45, 10 Mbit/s, 100 Mbit/s,
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
1 x RJ-45, RS-232: 50 bit/s – 115.2 kbit/s
1 x RJ-45, RS-232/422/485: 50 bit/s – 2 Mbit/s
L210-F2G
Managed Ethernet Switch with Routing Functionality
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
L210-F2G-12VDC
Managed Ethernet Switch with Routing Functionality - 12 volt version
8 x RJ-45, 10 Mbit/s, 100 Mbit/s
2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RedFox-5328-E-F4G-T24-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

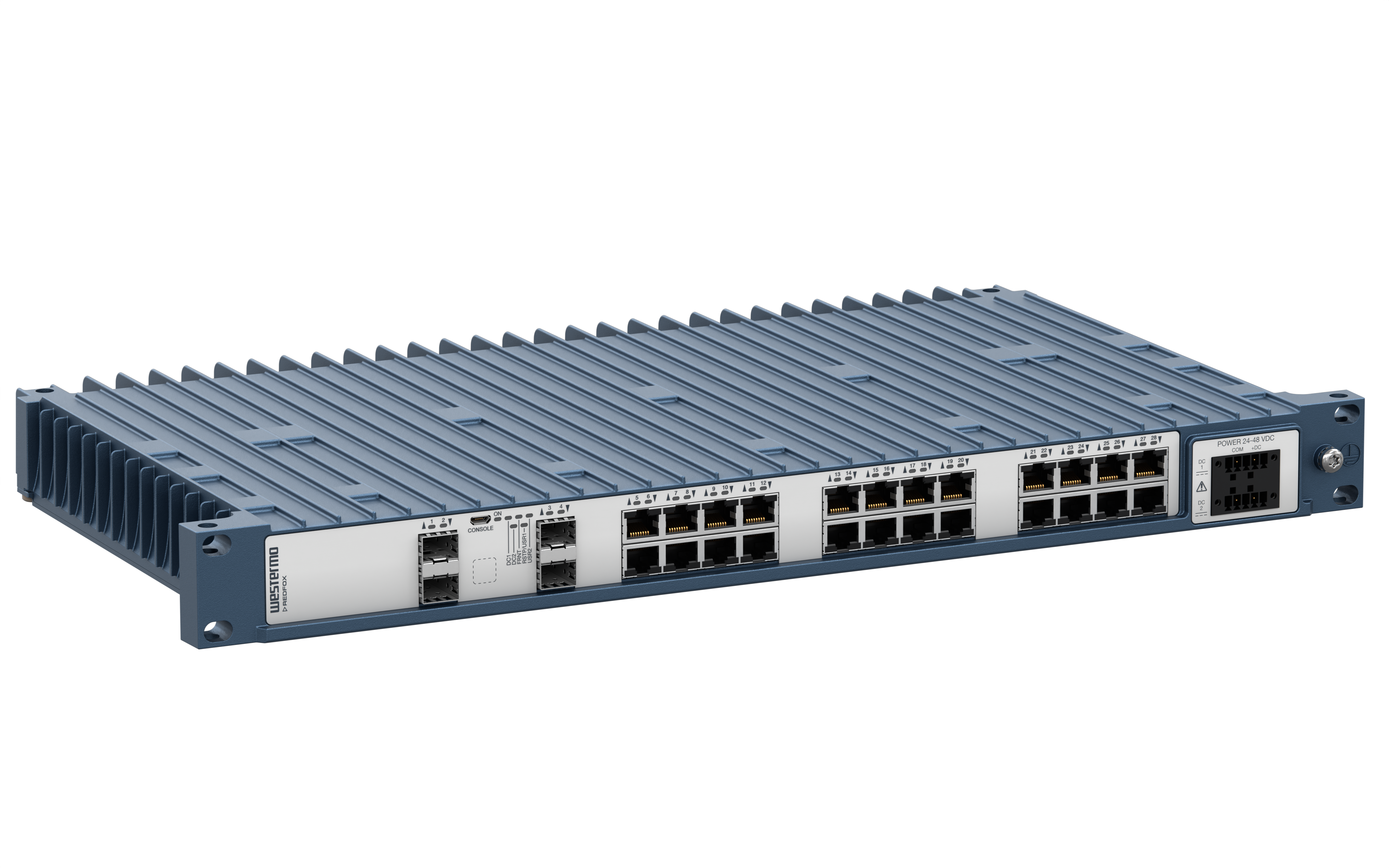

RedFox-5328-E-F4G-T24-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)

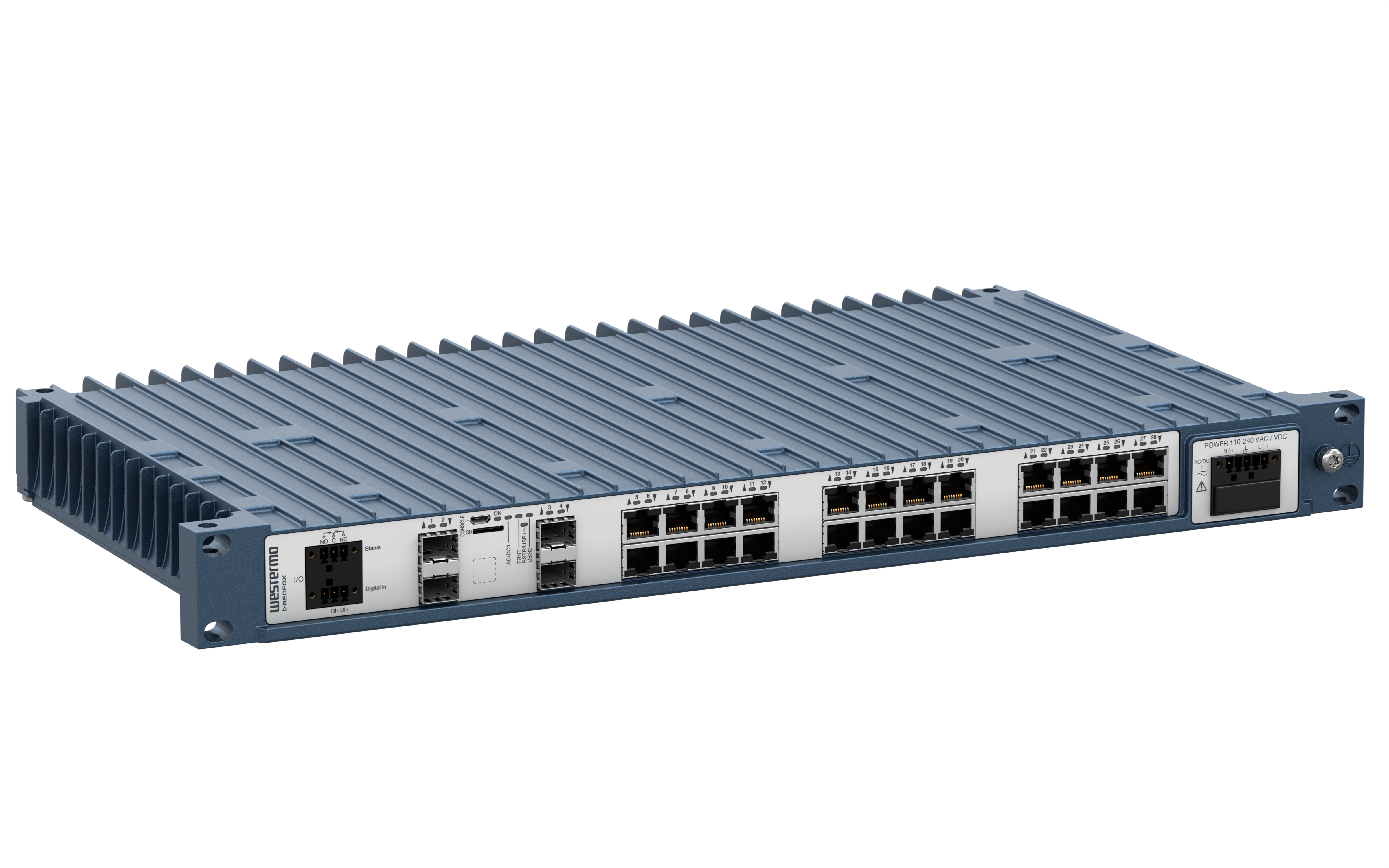

RedFox-5528-E-F4G-T24G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F4G-T24G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-F16G-T12G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RedFox-5528-E-T28G-HV
19” Rackmount Managed Ethernet Switch - high voltage version, layer 3
110 to 240 V AC/DC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5528-E-T28G-LV
19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
24 to 48 VDC
28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

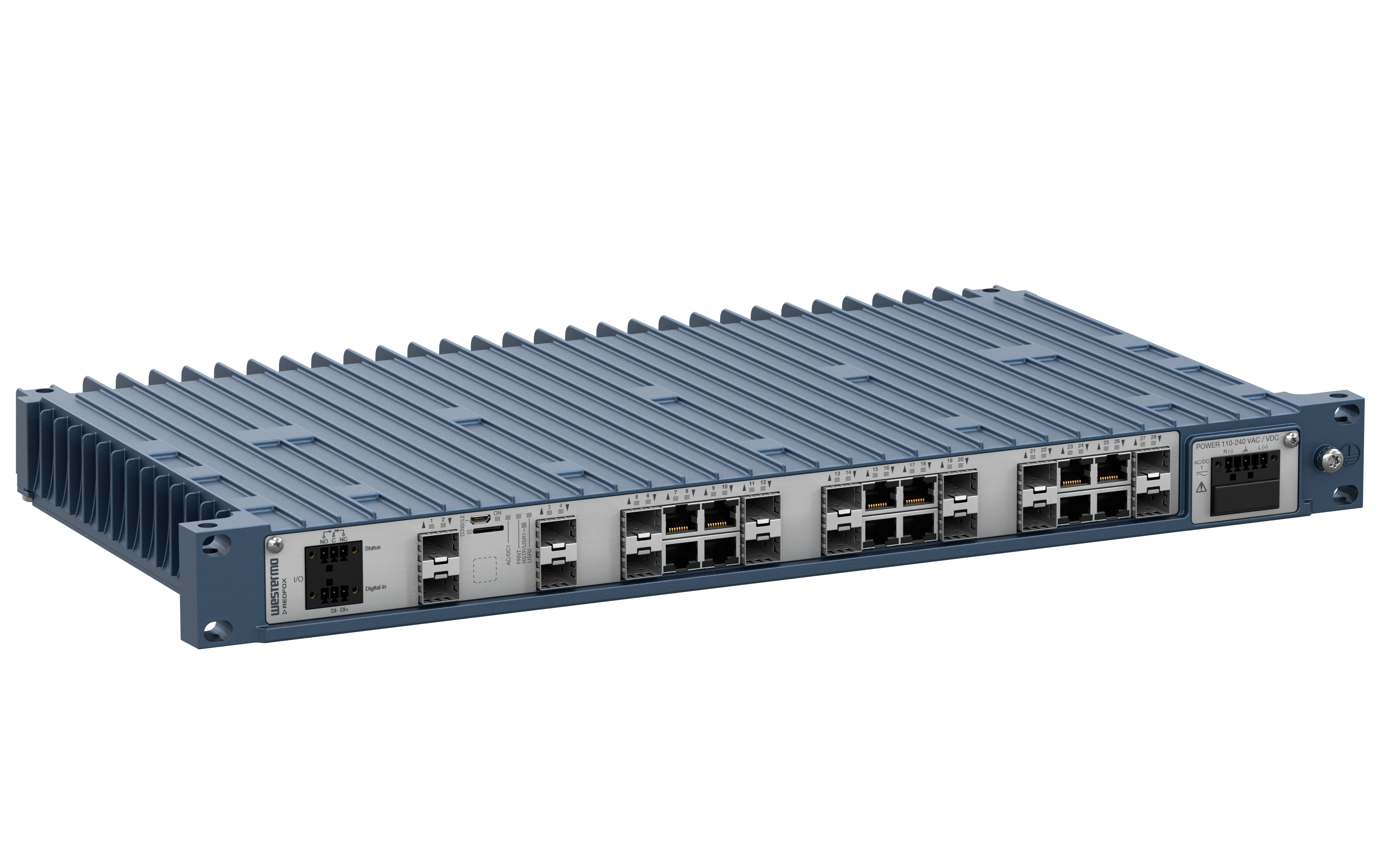

RedFox-5728-E-F4G-T24G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F4G-T24G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
24 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HV
19" Managed Substation Automation Switch - High voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-HVHV
19" Managed Substation Automation Switch - Dual high voltage version, layer 3
110 to 240 V AC/DC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LV
19" Managed Substation Automation Switch - Low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
RedFox-5728-E-F16G-T12G-LVLV
19" Managed Substation Automation Switch - Dual low voltage version, layer 3
24 to 48 VDC
16 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

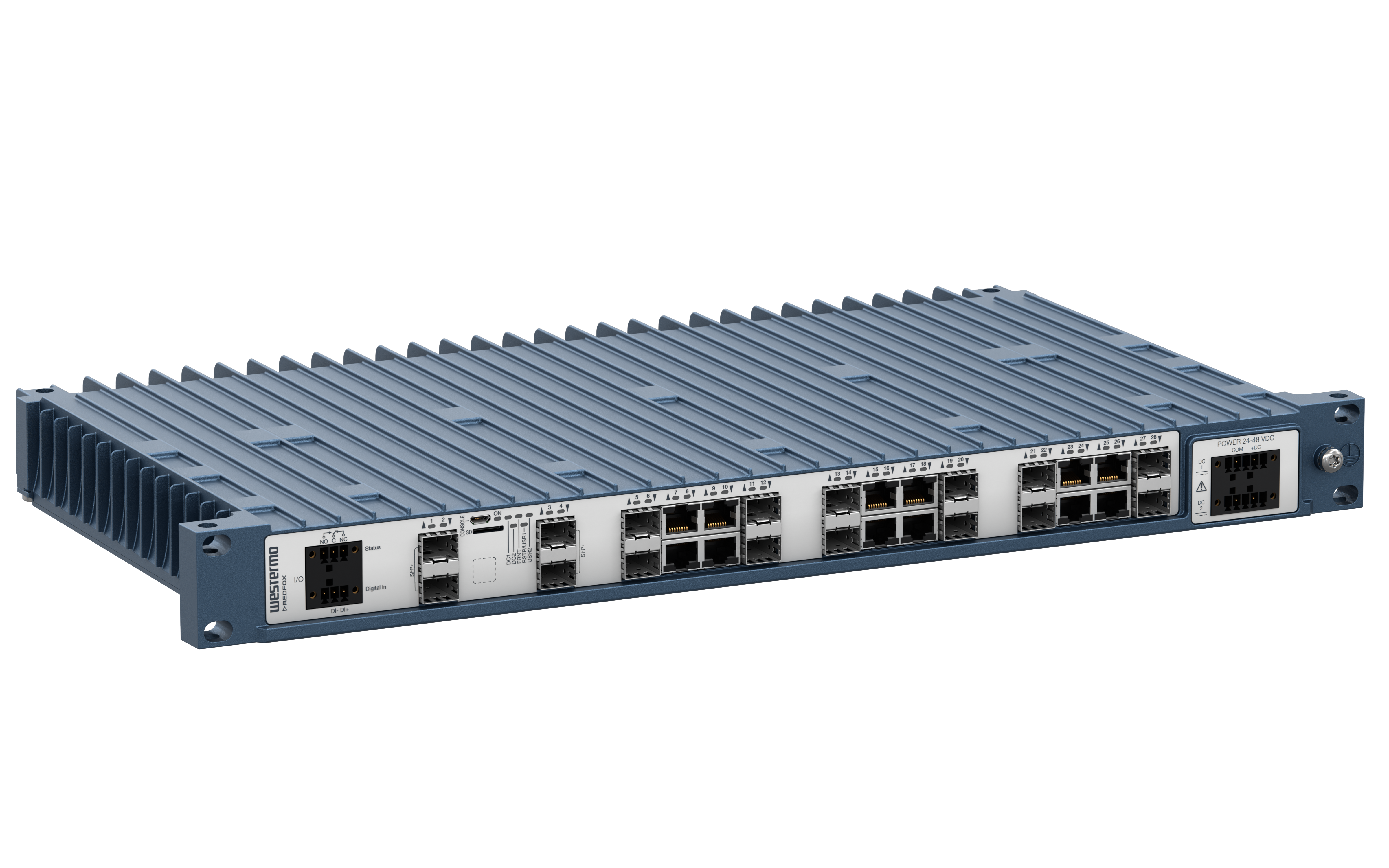

RedFox-7528-F4G10-F12G-T12G-LV
19” Managed 10 Gigabit Ethernet Switch - low voltage, layer 2
24 to 48 VDC
4 x 10 Gbit/s, SFP+
12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
12 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC)
RFI-211-F4G-T7G
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
RFI-211-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFI-219-F4G-T7G
Industrial Routing Switch
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

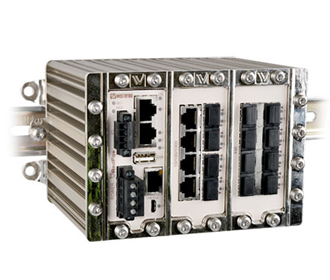

RFI-219-F4G-T7G-F8
Industrial Routing Switch
7 x 10/100/1000 Mbit/s, Gigabit Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 100 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)

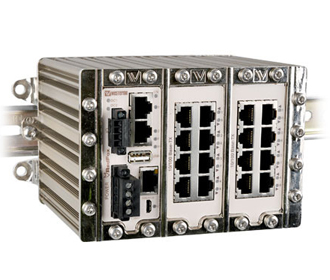

RFI-219-T3G
Industrial Routing Switch
3 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-219-F4G-T7G-AC
19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-219-F4G-T7G-DC
19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
8 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-227-F4G-T7G-AC
19” Industrial Routing Switch AC version
100 to 240 VAC 50 to 60 Hz
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45
RFIR-227-F4G-T7G-DC
19” Industrial Routing Switch DC version
16 to 60 VDC
7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX (LC) or TX SFP (RJ-45)
16 x 10/100 Mbit/s, Ethernet TX, RJ-45

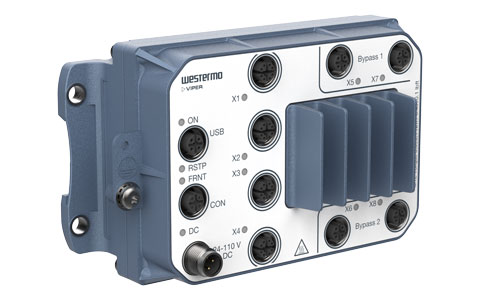

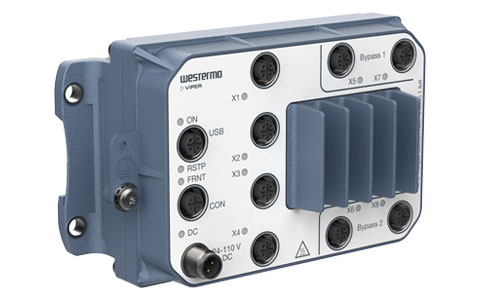

Viper-208-T4G-TBN
Managed EN 50155 Backbone-Routing-Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
Konsolen-Port
1 x RS-232

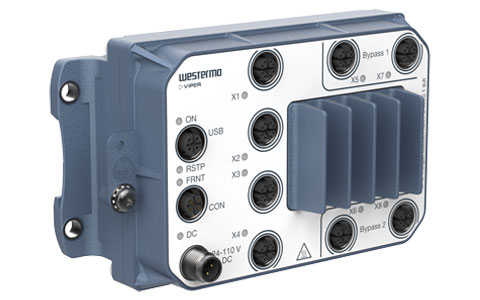

Viper-208-T8G-TBN
Managed EN 50155 Backbone-Routing-Switch
8 x Gbps ports
1 x USB
Konsolen-Port
1 x RS-232
Viper-212A-P8-HV
EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port

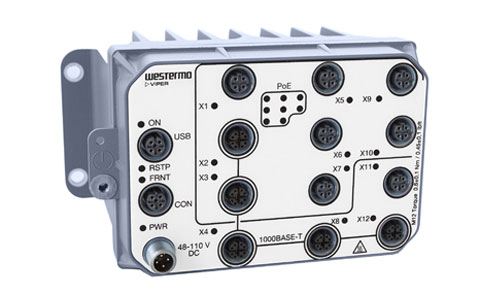

Viper-212A-T5G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port

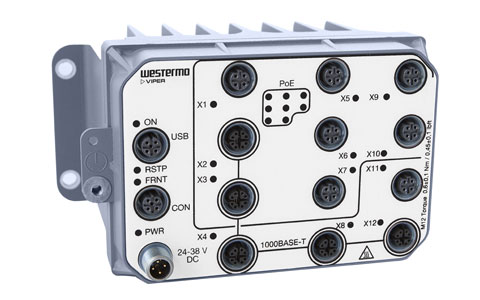

Viper-212A-T5G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
