Mobilfunk-Router
sicheres Routing über Mobilfunk für den industriellen Fernzugriff

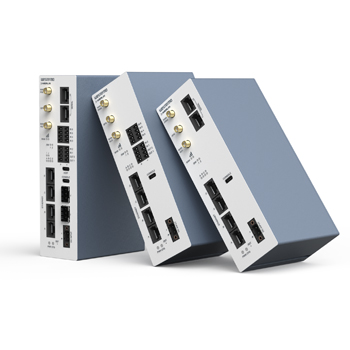

The Westermo range of industrial wireless cellular routers provides resilient remote access and eliminates the need for costly site visits. Whether you’re using a 5G, 4G LTE, 3G or 2G connection, Westermo have a solution. With support for secure VPN communications, static and dynamic IP routing, NAT, port forwarding, OpenVPN (SSL VPN), and a stateful packet inspection firewall, Westermo's industrial cellular routers provide secure and reliable communications.
CyBox GW 2-P
EN 50155 Mobile Wireless 5G Gateway
3 x 3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4 x SIM card slots for each 5G interface
2 x 1 Gbps ports, M12 connectors
Up to 2 x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC
CyBox GW-P
EN 50155 Mobile Wireless LTE Gateway
3 x 3 MIMO
11 x or 13 x QLS connectors
Up to 5 x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2 x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC
CyBox LTE 2-W
EN 50155 LTE and Wi-Fi Router
3 x 3 MIMO LTE CAT-7
5 x or 6 x QLS or 3 x SMA antenna connectors
2 x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
CyBox RT 2-A
Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3 x 3 MIMO
11 x QLS antenna connectors
5 x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
CyBox RT 3-W
EN 50155 5G and Wi-Fi 5 Router
4 x 4 MIMO
9 x QLS antenna connectors
2 x 1 Gbps ports, M12 connectors
4 x SIM card slots
1 GNSS
Power feed 24 to 110 VDC
GW1042W-X-QFR
Rugged Compact 4G/LTE Router with optional Wi-Fi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional)
GW2304-PE4-2DI2O-QFR
Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot
1 x GPS SMA female antenna connector
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-630
EN 50155 LTE and WLAN Router
2 x 2 MIMO LTE-A Cat-12
3 x 3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4 x 4 MIMO 5G 3GPP Rel 16
2 x 2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Merlin-4106-T4-S1-DI1
Industrial Cellular Router
LTE Cat 4
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Merlin-4106-T4-S1-DI1-QFT
Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 - 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input
Merlin-4407-T4-S2-LV
Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V - 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Serial ports RS-232/RS485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector
Merlin-4609-F2G-T4-S2-DI6-DO2-LV
Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector
Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR
Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
