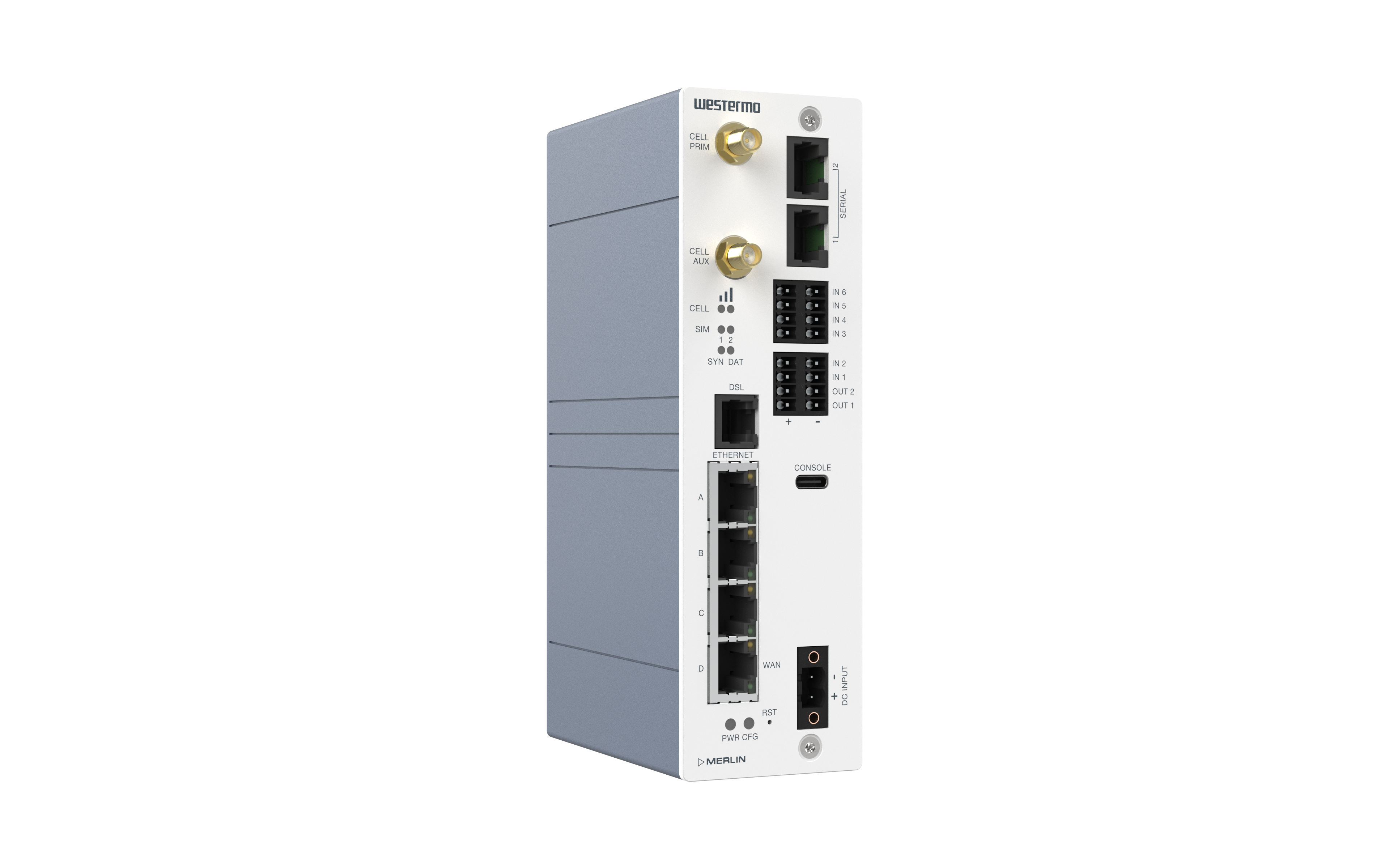

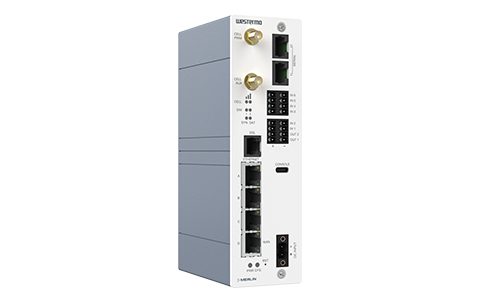

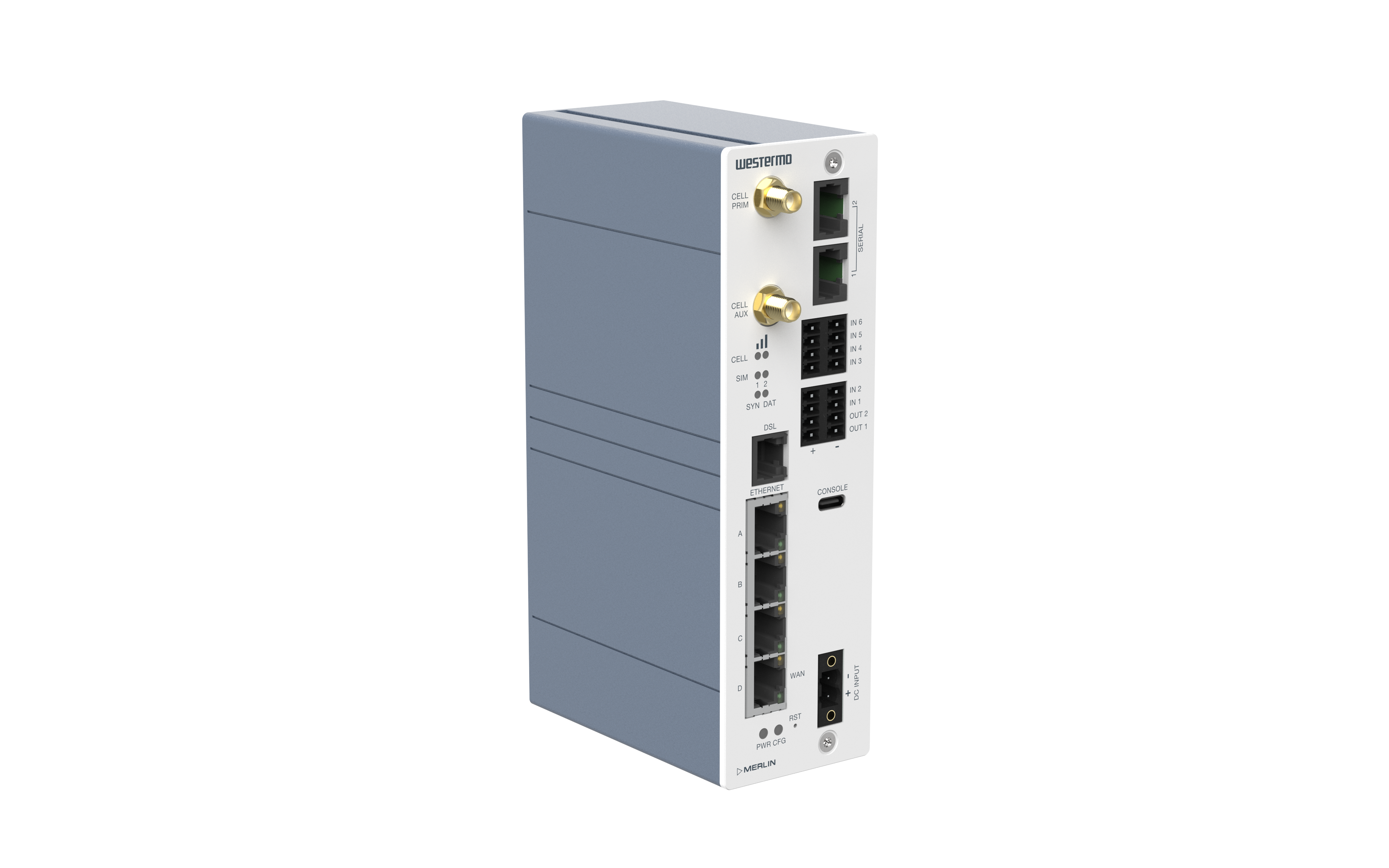

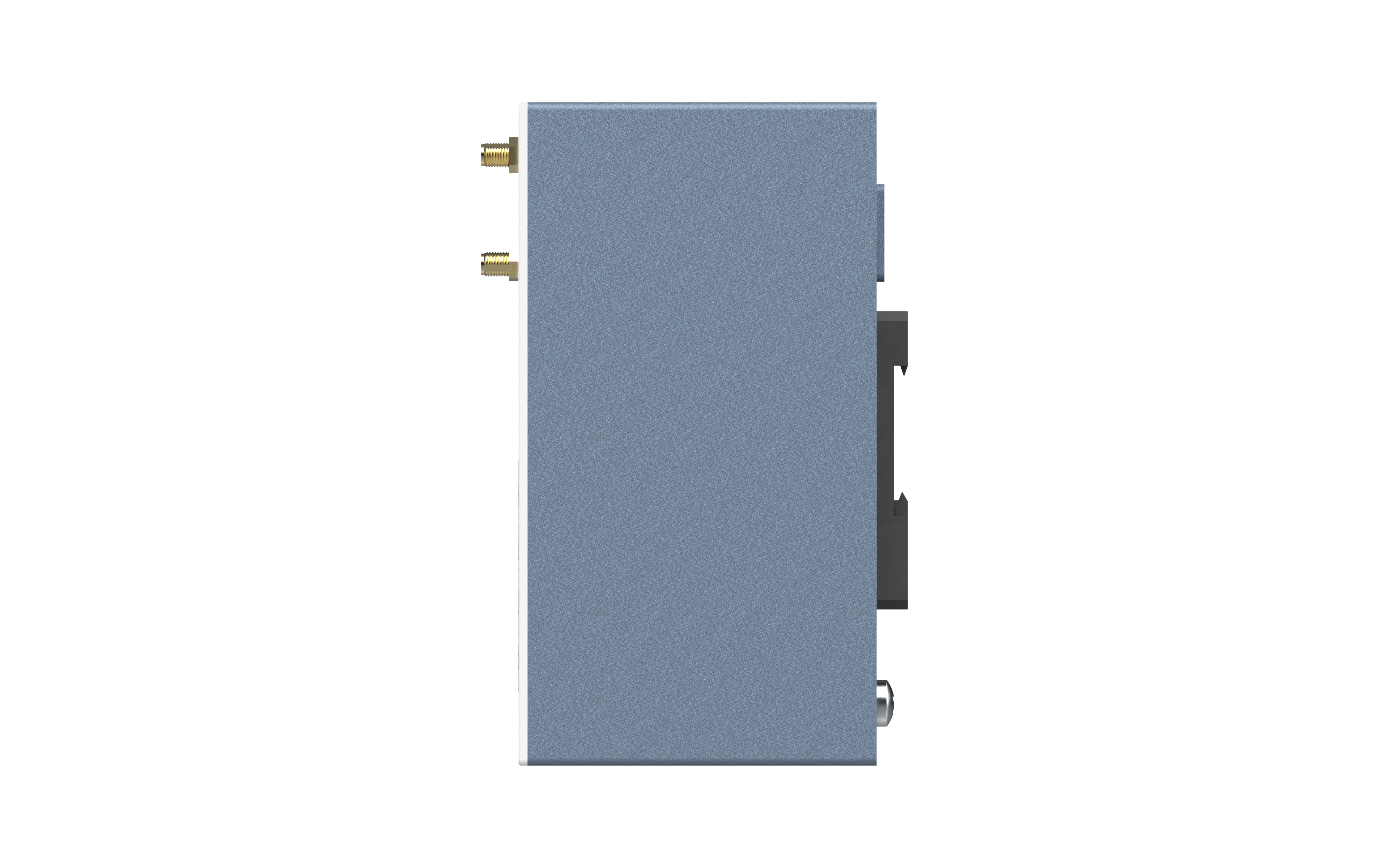

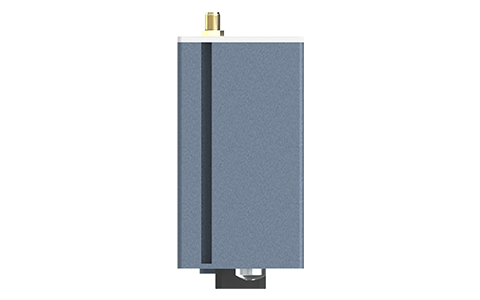

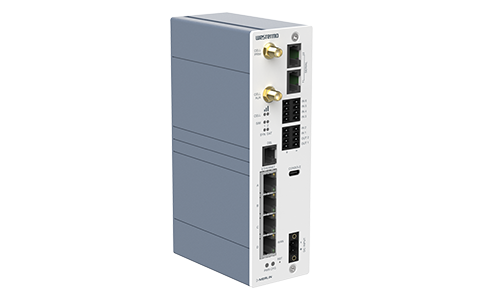

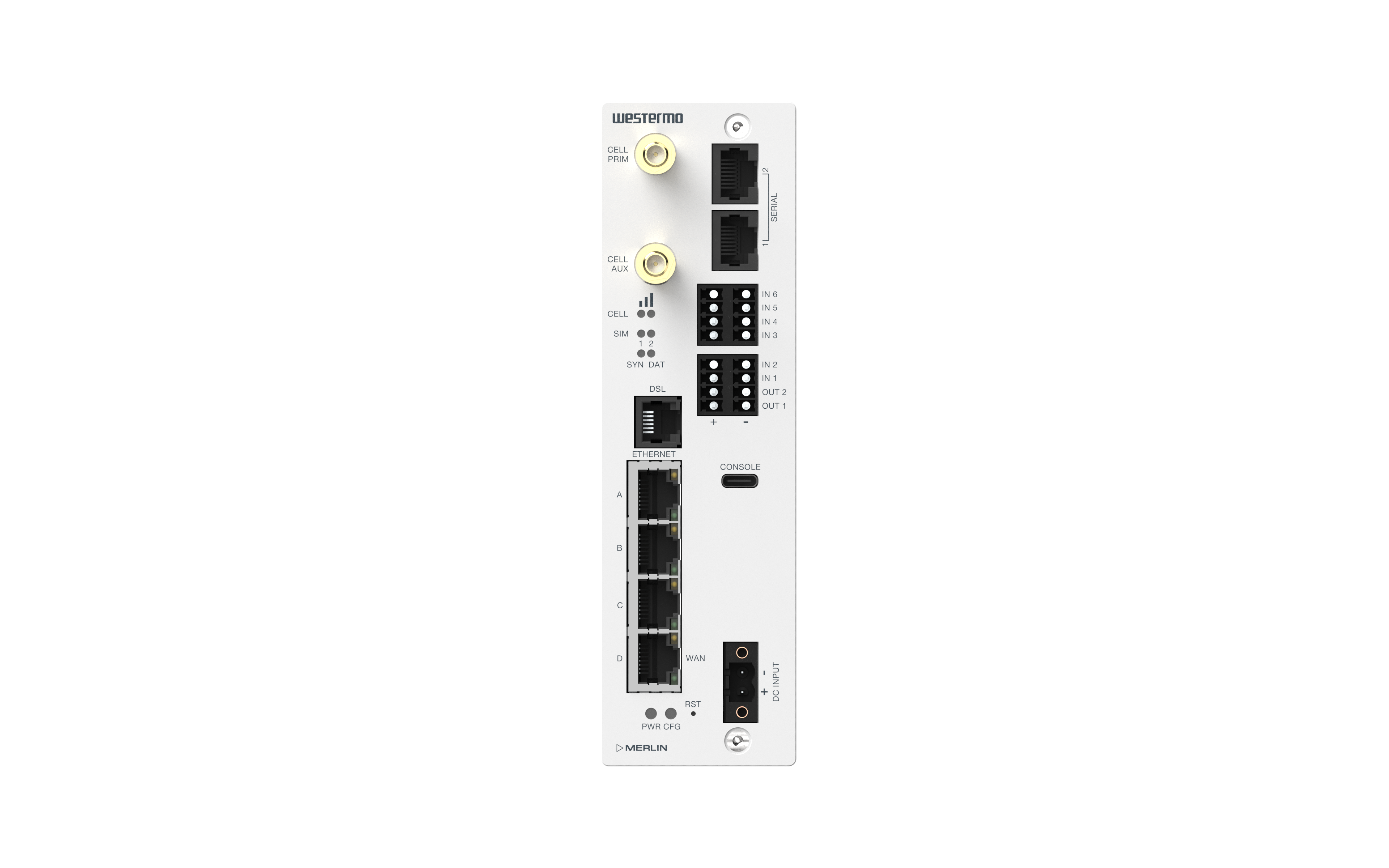

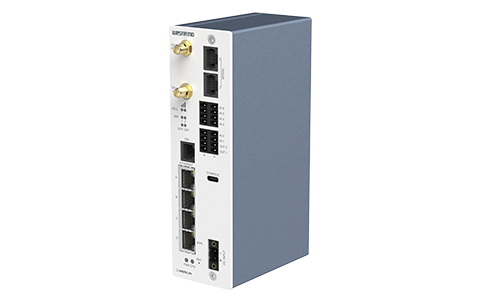

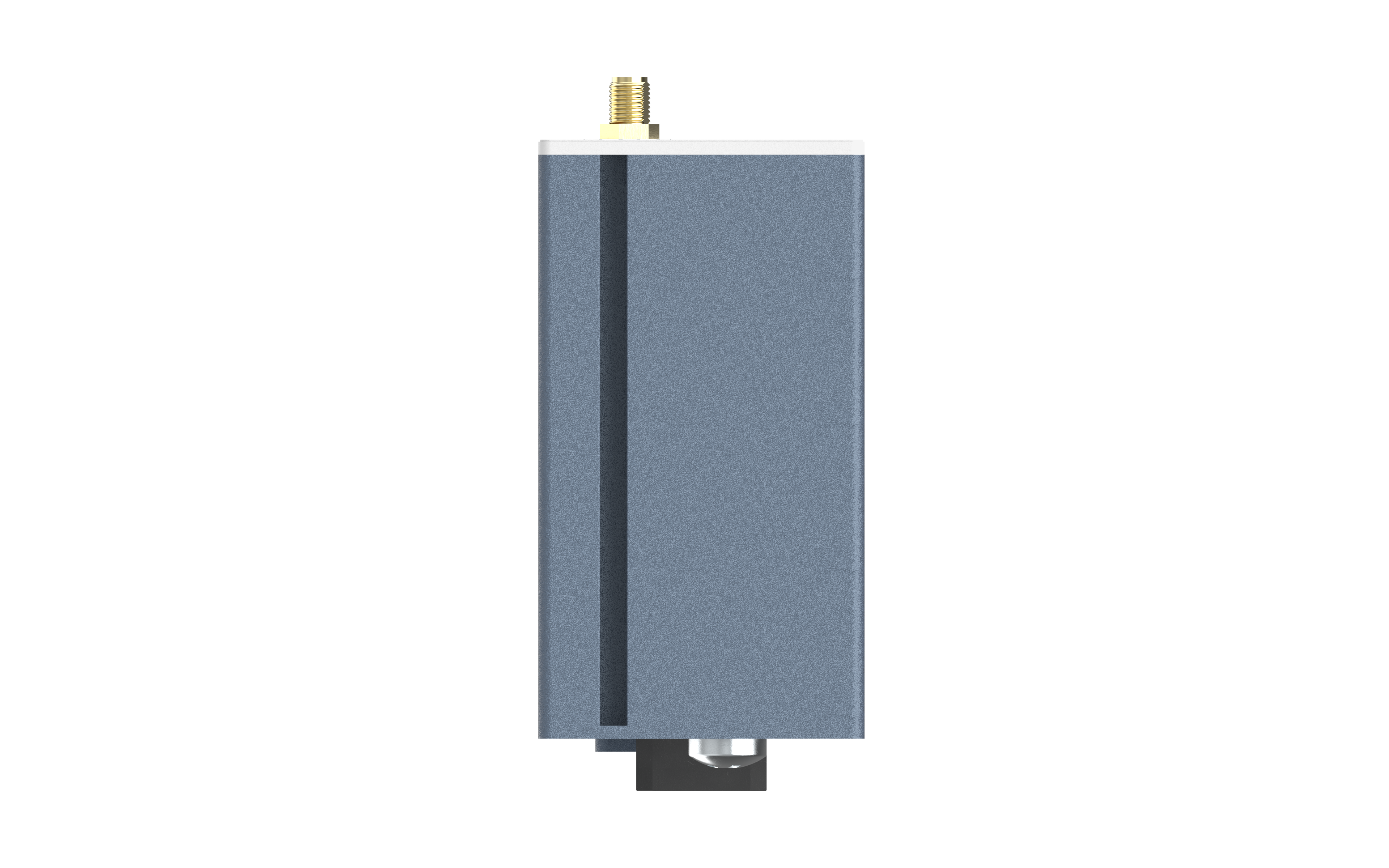

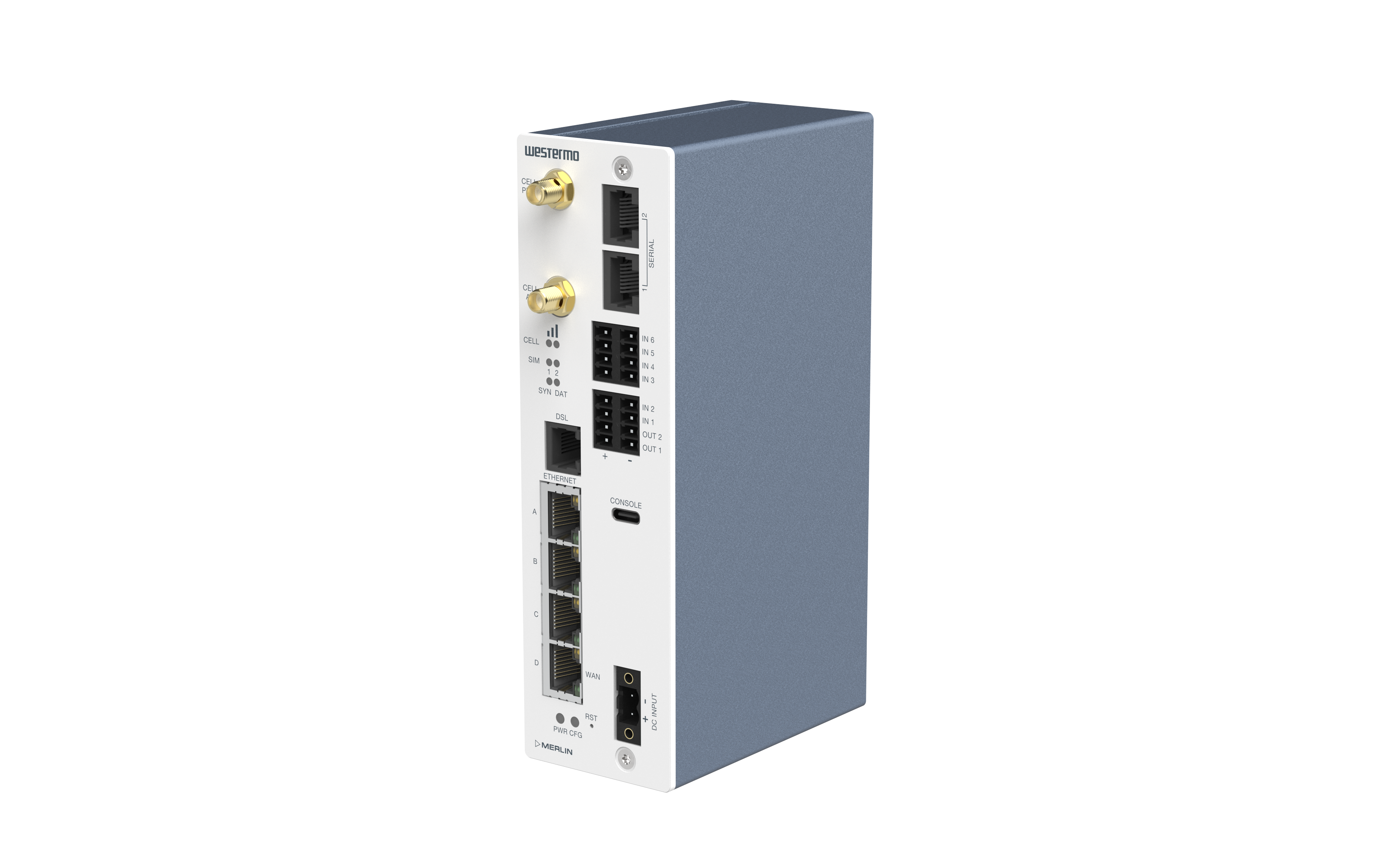

Industrial VDSL LTE Cellular Router

Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR

Features

✔ Versatile VDSL LTE cellular router for industrial applications

• Zero-touch large scale deployment
• Multi-service support: LTE, GbE Ethernet, VDSL, Digital I/Os, RS-232/485
• Industrial protocol gateway and conversion
• Support for WeConnect

✔ Best-in-class Cybersecurity

• Secure Boot ensures software is authentic and unmodified
• Trusted Platform Module keeps cryptographic keys secure
• Cybersecurity suite: 802.1X, IPSec encryption, stateful firewall

Summary

The Merlin series of versatile cellular routers provide high speed data network connectivity for demanding industrial and smart grid applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects.

This compact, rugged unit is suited to tight spaces. Its high MTBF and wide temperature range support maximum service life.

To achieve best-in-class cybersecurity, the Merlin series is equipped with a TPM (Trusted Platform Module) chip that keeps cryptographic keys secure. Secure Boot ensures that the unit boots using only software that is signed and trusted by manufacturer. A set of cybersecurity tools is available as standard including VPN and stateful Firewall support for data security and user authentication.

The built-in industrial protocol gateway enables several devices using different protocols to be accessed via a common protocol interface. The unit supports up to 6 digital inputs and 2 outputs for local control or monitoring. Support for more digital inputs and outputs is possible using external modules.

Read more

Technical Specifications

Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
