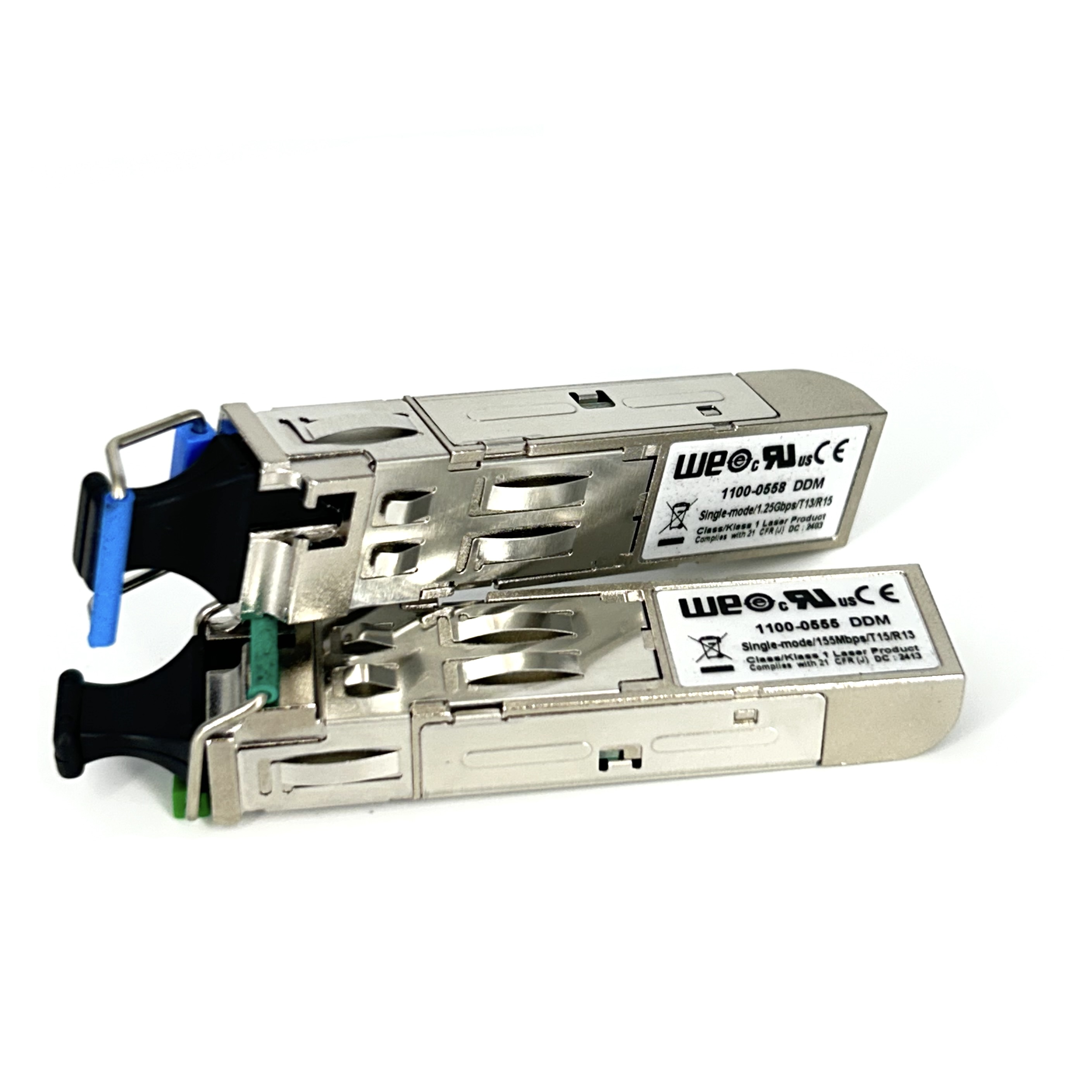

Singlemode BiDi SFP Transceivers

Westermo’s range of 100 Mbit singlemode SFPs with CWDM are suitable for long-range applications. A CWDM transceiver enables increased network capacity by sending up to 8 optical signals on a single fibre core where each signal operates at a specific wavelength, allowing simultaneous transmission. Using the DDM functionality, which is fully integrated into WeOS, it is possible to monitor parameters such as temperature, TX/RX power and voltage, ensuring correct operation.

As industrial networks transmit more data, 100 Mbit/s fibre links can be used to link sites across long distances. Setting up network backbones over long distances is now possible and CWDM transceivers can increase the capacity by using different wavelengths for data communication over the same fibre link. The SFPs are tested and optimized for compatibility with the WeOS platform and are offered in multiple different variants with an indicative range of 80 km.

To meet the high demands of mission-critical applications, all SFP transceivers undergo thorough environmental testing to ensure they can perform under the harshest conditions. Additionally, their functionality is pushed to the limit to guarantee availability and reliability.

WeOS, the Westermo operating system, is designed to meet the toughest requirements, and full support for all offered transceivers is a crucial aspect. All features of WeOS are extensively tested and verified to be fully supported on any WeOS device with a Westermo transceiver installed.
