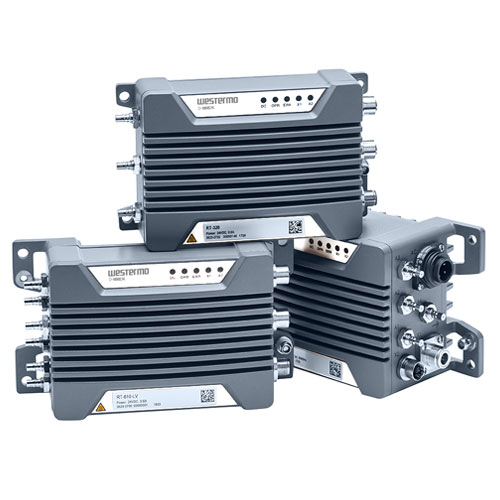

Ibex series
Robust and compact WLAN & LTE devices ensuring reliable wireless high-speed data communication
The Westermo Ibex series of rugged LTE routers, WLAN access points, clients and bridges are designed to ensure reliable high-speed wireless data communication in extreme operational environments. All models are approved to the EN 50121-4 standard for trackside applications as well as the EN 50155 standard for applications onboard trains. In addition to rail applications, the Ibex product family is very well suited for deployment in other industries with severe operating conditions and harsh environments.
Ibex-1310
Industrial Outdoor Wi-Fi 6 Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x N-type connector for Wi-Fi 6 with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 12 to 48 VDC or PoE/PoE+
Ibex-1510
EN50155 Wi-Fi 6 Dual Radio Access Point
2 x 2 MU-MIMO 5 GHz and 2.4 GHz
2 x QMA compatible antenna connectors
with built-in combiner
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-3510
EN50155 Wi-Fi 6E Tri-band Radio Access Point
Concurrent 2.4 GHz, 5 Ghz and 6 GHz
6 x QMA compatible antenna connectors
2 x 2.5Gbps port, M12 connectors
IP66 and -40° - +70°C operating range
Power feed: 24 to 110 VDC or PoE/PoE+
Ibex-A2510
Railway WLAN Access Point with Wi-Fi 6 dual radio and integrated antenna
IEEE 802.11 a/b/g/n/ac/ax
3 x 3 MU-MIMO with 5 GHz or 2.4 GHz per Wi-Fi interface
6 x integrated RF antennas
1 x 1 Gbps port, M12 connector
PoE+
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-220
EN 50155 WLAN 2 x 2 Client/Bridge/Access Point
2 x 2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-320
EN 50155 WLAN 3 x 3 Client/Bridge/Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-370
WLAN Infrastructure Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC or PoE
Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4 x 4 MU-MIMO 5 GHz
2 x 2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
