Train network products
Intelligent communication solutions for train networks
There are a number of factors that set train networks apart from traditional networks. For instance, train networks have to deal with a dynamically changing topology, as rail cars are connected/disconnected to the train. It also has to ensure high uptime, by coping with a number of failure scenarios. Network security is another crucial aspect, as threats are intensifying.
Consequently, demands on the intelligence of the network are constantly increasing. Westermo has, through its many years in the data communications industry in general and in the train networks business in particular, developed a unique know-how about demands and solutions for the train networks market.
High-speed communication networks on-board trains
Ibex-1310
Point d'accès Wi-Fi 6 industriel pour l'extérieur
2x2 MU-MIMO 5 GHz et 2,4 GHz
2 x connecteur de type N pour Wi-Fi 6 avec combineur intégré
2 x port 2.5Gbps, connecteurs M12
IP66 et plage de fonctionnement -40° - +70°C
Alimentation électrique : 12 à 48 VDC ou PoE/PoE+
Ibex-1510
EN50155 Point d'accès Wi-Fi 6 double radio
2x2 MU-MIMO 5 GHz et 2,4 GHz
2 connecteurs d'antenne compatibles QMA
avec combineur intégré
2 x port 2.5Gbps, connecteurs M12
IP66 et plage de fonctionnement -40° - +70°C
Alimentation électrique : 24 à 110 VDC ou PoE/PoE+
Ibex-1510
EN50155 Point d'accès Wi-Fi 6 double radio
2x2 MU-MIMO 5 GHz et 2,4 GHz
2 connecteurs d'antenne compatibles QMA
avec combineur intégré
2 x port 2.5Gbps, connecteurs M12
IP66 et plage de fonctionnement -40° - +70°C
Alimentation électrique : 24 à 110 VDC ou PoE/PoE+
Ibex-A2510
Point d'accès WLAN ferroviaire avec double radio Wi-Fi 6 et antenne intégrée
IEEE 802.11 a/b/g/n/ac/ax
3x3 MU-MIMO avec 5 GHz ou 2,4 GHz par interface Wi-Fi
6x antennes RF intégrées
1x port 1 Gbps, connecteur M12
PoE+
Ibex-RT-280
Infrastructure WLAN Access Point
2 x 2 MIMO with separated monitoring interface
3 x N-type antenna connectors
2 x 100 Mbps fibre optic ports with ODC-2 connectors
1 x 1 Gbps port, M12 connector
IP66 and -40° - +70°C operating range
Power feed 100-240 VAC
Ibex-RT-220
EN 50155 WLAN 2 x 2 Client/Bridge/Access Point
2 x 2 MIMO
2 x QMA compatible antenna connectors
2 x 100 Mbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-320
EN 50155 WLAN 3 x 3 Client/Bridge/Access Point
3 x 3 MIMO
3 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV:24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330
EN 50155 LTE Router and Mobile Communication Gateway
2 x 2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-330-5G
EN 50155 5G Router
4 x 4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Ibex-RT-370
WLAN Infrastructure Access Point
3x3 MIMO
3 x QMA compatible antenna connectors
1 x Gbps port, M12 connector
1 x Gbps fibre optic port, ODC-2 connector
Power feed 100-240 VAC
Ibex-RT-610
EN 50155 WLAN Dual Radio Access Point
4 x 4 MU-MIMO 5 GHz
2 x 2 MIMO 2.4 GHz
6 x QMA compatible antenna connectors
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630
EN 50155 LTE and WLAN Router
2 x 2 MIMO LTE-A Cat-12
3 x 3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Ibex-RT-630-5G
EN 50155 5G and WLAN Router
4 x 4 MIMO 5G 3GPP Rel 16
2 x 2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° - +70°C operating range
Power feed LV: 24 VDC or PoE
Viper-208-TBN
Commutateur de routage Backbone administrable EN 50155
8 ports 100 Mbps
1 x USB
1 port console RS-232
Viper-208-T8G-TBN
Managed EN 50155 Backbone Routing Switch
8 x Gbps ports
1 x USB
1 x RS-232 console port
Viper-108-T8G
Commutateur Gigabit Administrable
8 x1 Gbps ports
1 x USB
1 x port de console RS-232
Viper-208-T8G
Managed Gigabit Routing Switch
8 x1 Gbps ports
1 x USB
1 x RS-232 console port
Viper-208-T4G-TBN
Managed EN 50155 Backbone Routing Switch
4 x Gbps ports
4 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A
EN 50155 Managed Routing Switch
12 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-002-T1G-PL1
EN 50155 Ethernet Powerline Bridge
1 x 1 Gbps Ethernet port
1 x 2-wire cable port
Viper-002-T1-PL1
EN 50155 Ethernet Powerline Bridge
1 x 100 Mbps Ethernet port
1 x 2-wire cable port
Viper-112A-P8-LV
EN 50155 Commutateur PoE administrable - version basse tension
12 x 100 Mbps ports, dont 8 PoE
1 x USB
1 x port de console RS-232
Viper-212A-P8-HV
EN 50155 Managed PoE Routing Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-P8-LV
EN 50155 Managed PoE Switch
12 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G
EN 50155 Managed Gbps Routing Switch
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T3G-P8-LV
EN 50155 Commutateur PoE Gbps administrable
3 x Gbps ports
9 x 100 Mbps ports, dont 8 PoE
1 x USB
1 x RS-232 console port
Viper-212A-T3G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
3 x Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G
EN 50155 Commutateur Gbps administrable
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-212A-T5G
EN 50155 Managed Gbps Routing Switch
5 x Gbps ports
7 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-HV
EN 50155 Commutateur PoE Gbps administrable
5 x ports Gbps, dont 2 PoE
7 x ports 100 Mbps, dont 6 PoE
1 x USB
1 x port de console RS-232
Viper-212A-T5G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-112A-T5G-P8-LV
EN 50155 Commutateur PoE Gbps administrable
5 x ports Gbps, dont 2 PoE
7 x ports 100 Mbps, dont 6 PoE
1 x USB
1 x port de console RS-232
Viper-212A-T5G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
5 x Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-120A
EN 50155 Commutateur administrable
20 x 100 Mbps ports
1 x USB
1 x port de console RS-232
Viper-112A
Commutateur Administrable EN 50155
12 x 100 Mbps ports
1 x USB
1 x port de console RS-232
Viper-112A-P8-HV
EN 50155 Commutateur PoE administrable - version haute tension
12 x 100 Mbps ports, dont 8 PoE
1 x USB
1 x port de console RS-232
Viper-112A-T3G
EN 50155 Commutateur Gbps administrable
3 x Gbps ports
9 x 100 Mbps ports
1 x USB
Viper-112A-T3G-P8-HV
EN 50155 Commutateur PoE Gbps administrable
3 x Gbps ports
9 x 100 Mbps ports, dont 8 PoE
1 x USB
1 x RS-232 console port
Viper-220A
EN 50155 Managed Routing Switch
20 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-P8-HV
EN 50155 Commutateur PoE administrable
20 x 100 Mbps ports, dont 8 ports PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-HV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-P8-LV
EN 50155 Commutateur PoE administrable
20 x 100 Mbps ports, dont 8 ports PoE
1 x USB
1 x RS-232 console port
Viper-220A-P8-LV
EN 50155 Managed PoE Routing Switch
20 x 100 Mbps ports, whereof 8 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G
EN 50155 Commutateur PoE administrable
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-220A-T4G
EN 50155 Managed Gbps Routing Switch
4 x Gbps ports
16 x 100 Mbps ports
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-HV
EN 50155 Commutateur PoE administrable
4 x Gbps ports, dont 2 ports PoE
16 x 100 Mbps ports, dont 6 ports PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P8-LV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P8-LV
EN 50155 Commutateur PoE administrable
4 x Gbps ports, dont 2 ports PoE
16 x 100 Mbps ports, dont 6 ports PoE
1 x USB
1 x RS-232 console port
Viper-120A-T4G-P12-HV
EN 50155 Managed Gbps PoE Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB
1 x RS-232 console port
Viper-220A-T4G-P12-HV
EN 50155 Managed Gbps PoE Routing Switch
4 x Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 10 PoE
1 x USB
1 x RS-232 console port

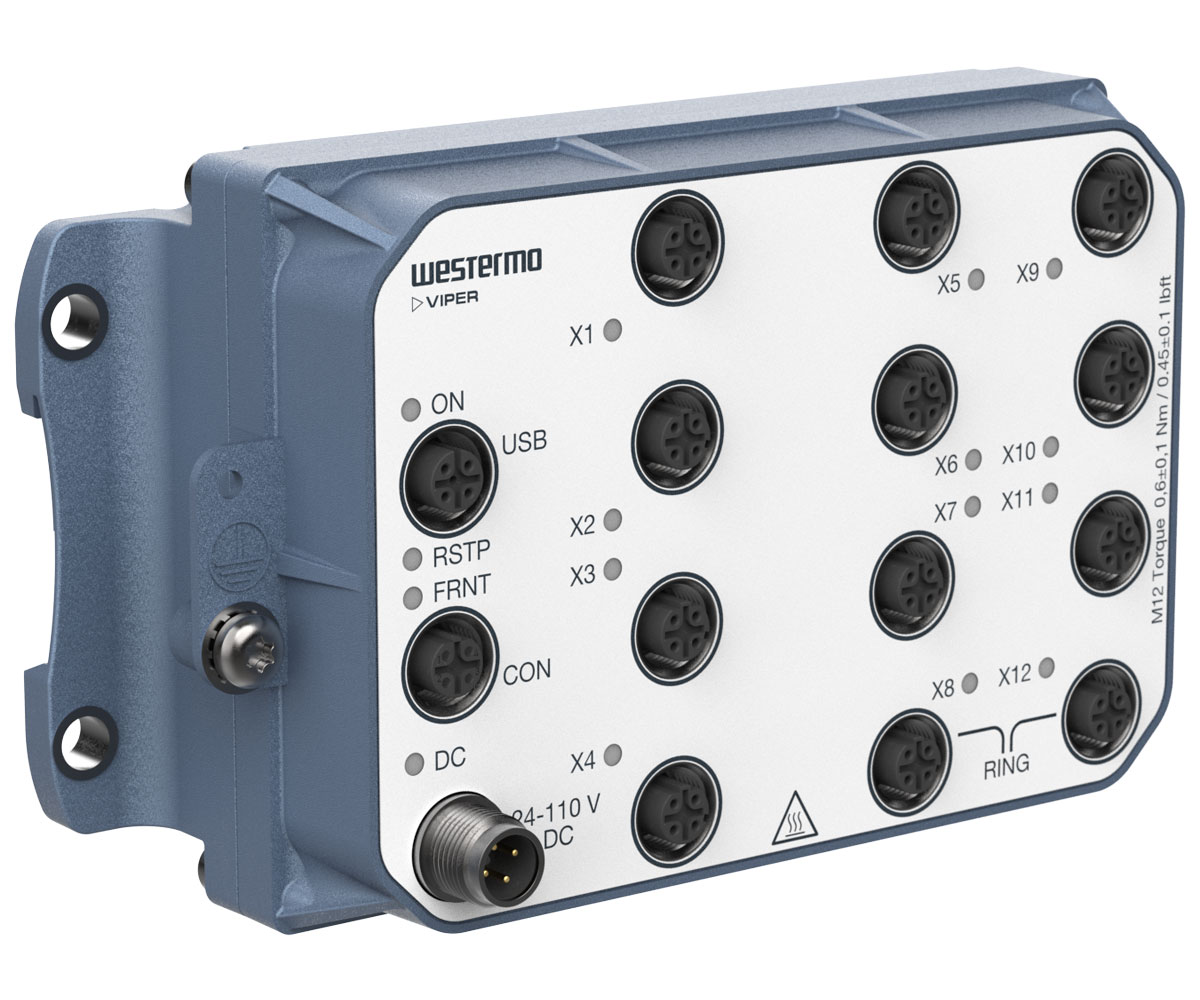

Viper-3512-T12
EN 50155 Managed Routing Switch
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-T4-P8
EN 50155 Managed Routing Switch
Available in layer 2 and layer 3 configurations
12 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-T3G-T9
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
3 x 1 Gbps Ports
9 x 1 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-T3G-T1-P8
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
3 x 1 Gbps ports
9 x 100 Mbps ports, whereof 8 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3512-T3G-P2G-T1-P6
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
5 x 1 Gbps ports, whereof 2 PoE
7 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-T20
EN 50155 Managed Routing Switch
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-T12-P8
EN 50155 Managed Routing Switch
Available in layer 2 and layer 3 configurations
20 x 100 Mbps ports, whereof 8 PoE
1 x USB backup and restore port
1 x RS-232 console port
Viper-3520-T4G-T16
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports
16 x 100 Mbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-T2G-P2G-T10-P6
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports, whereof 2 PoE
16 x 100 Mbps ports, whereof 6 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3520-T2G-P2G-T6-P10
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
4 x 1 Gbps ports
16 x 100 Mbps ports, whereof 12 PoE
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-T8G
EN 50155 Managed Gbps Routing Switch
Available in layer 2 and layer 3 configurations
8 x 1 Gbps ports
1 x USB Backup and restore port
1 x RS-232 console port
Viper-3508-E-T8-TBN
EN 50155 Managed Gbps Routing Switch
Available in layer 3 configurations
8 x 1 Mbps ports
2 Bypass relays
1 x USB Backup and restore port
1 x RS-232 console port
Nuri Shakeer
International sales
Pour toute requête technique, merci de vous orienter vers le contact support
